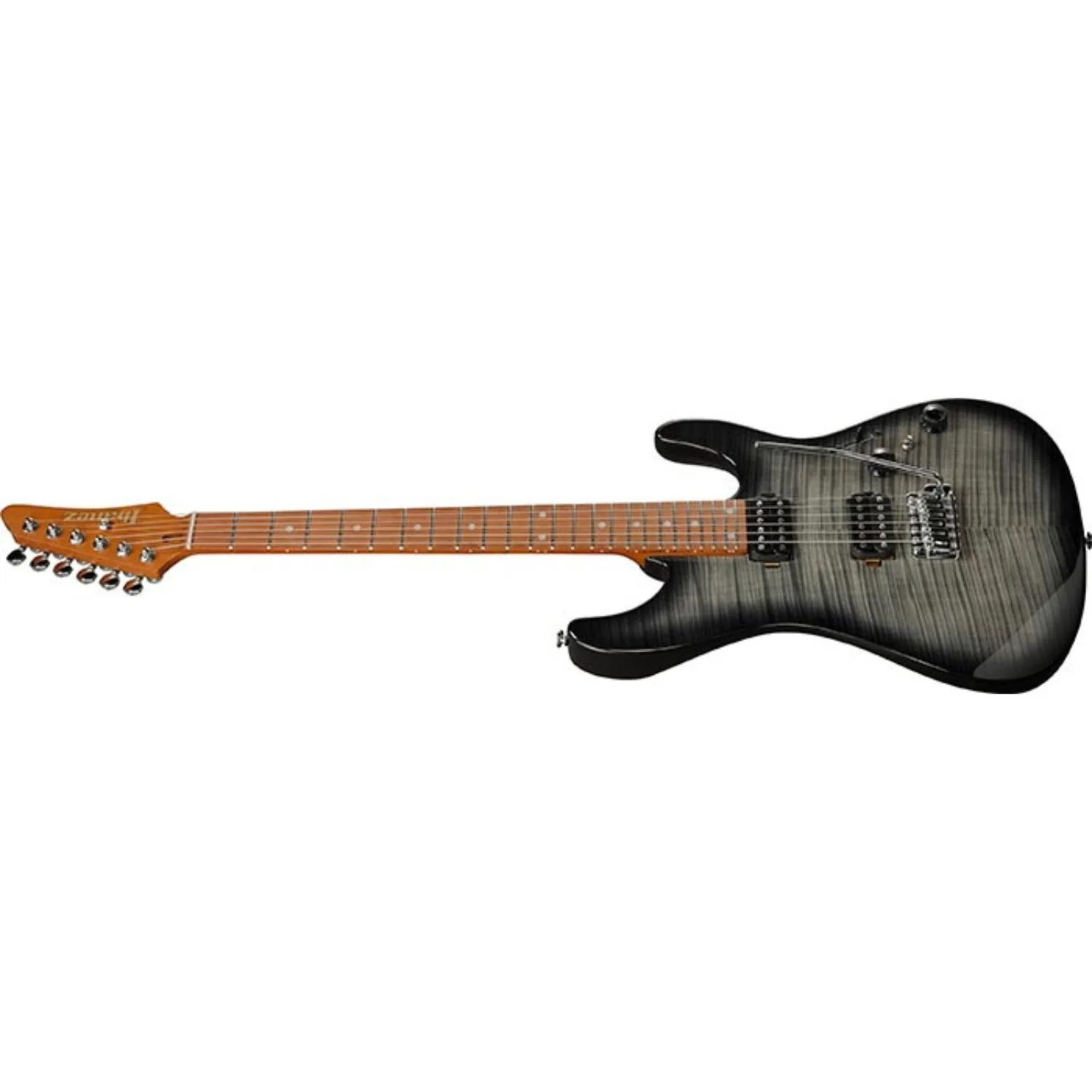

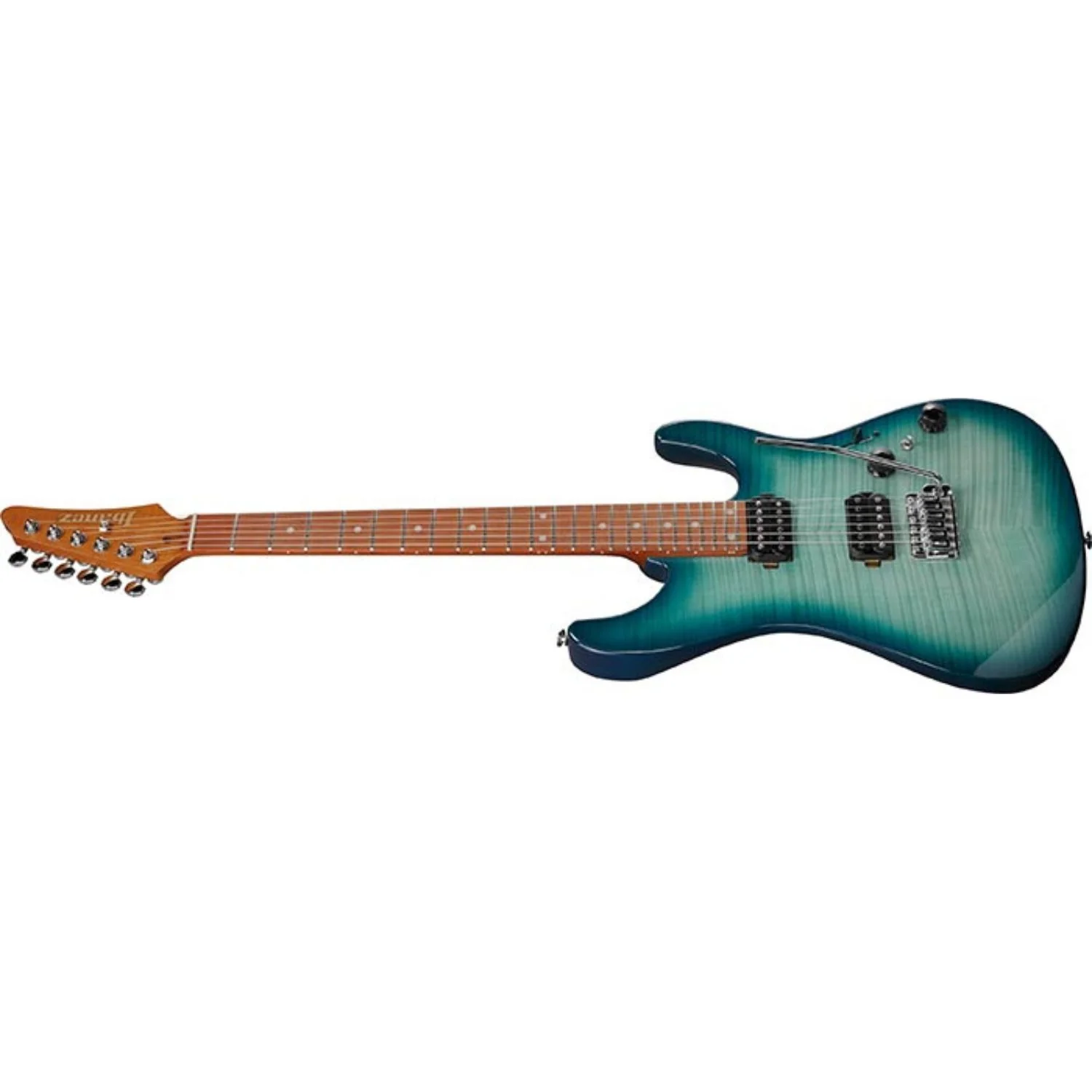

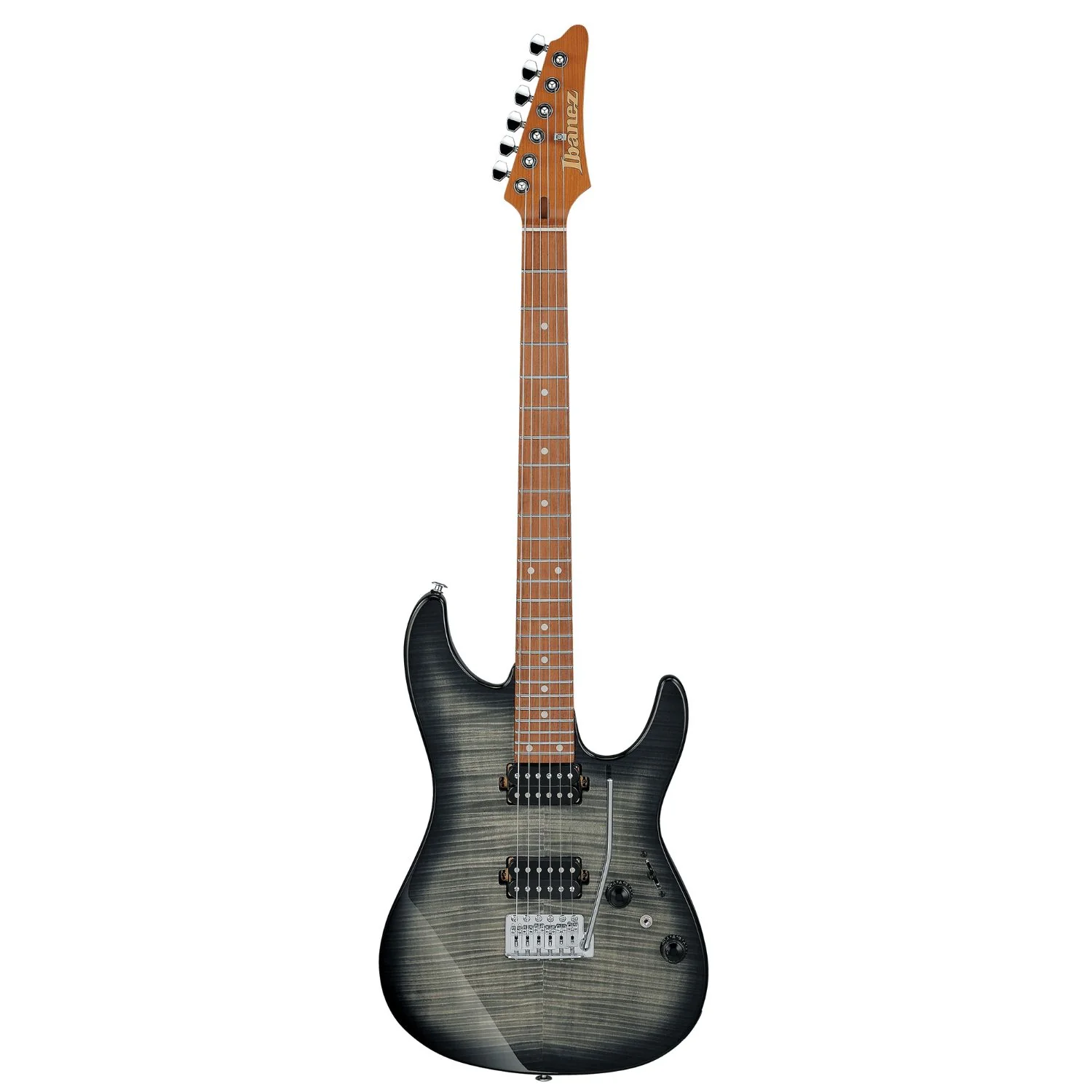

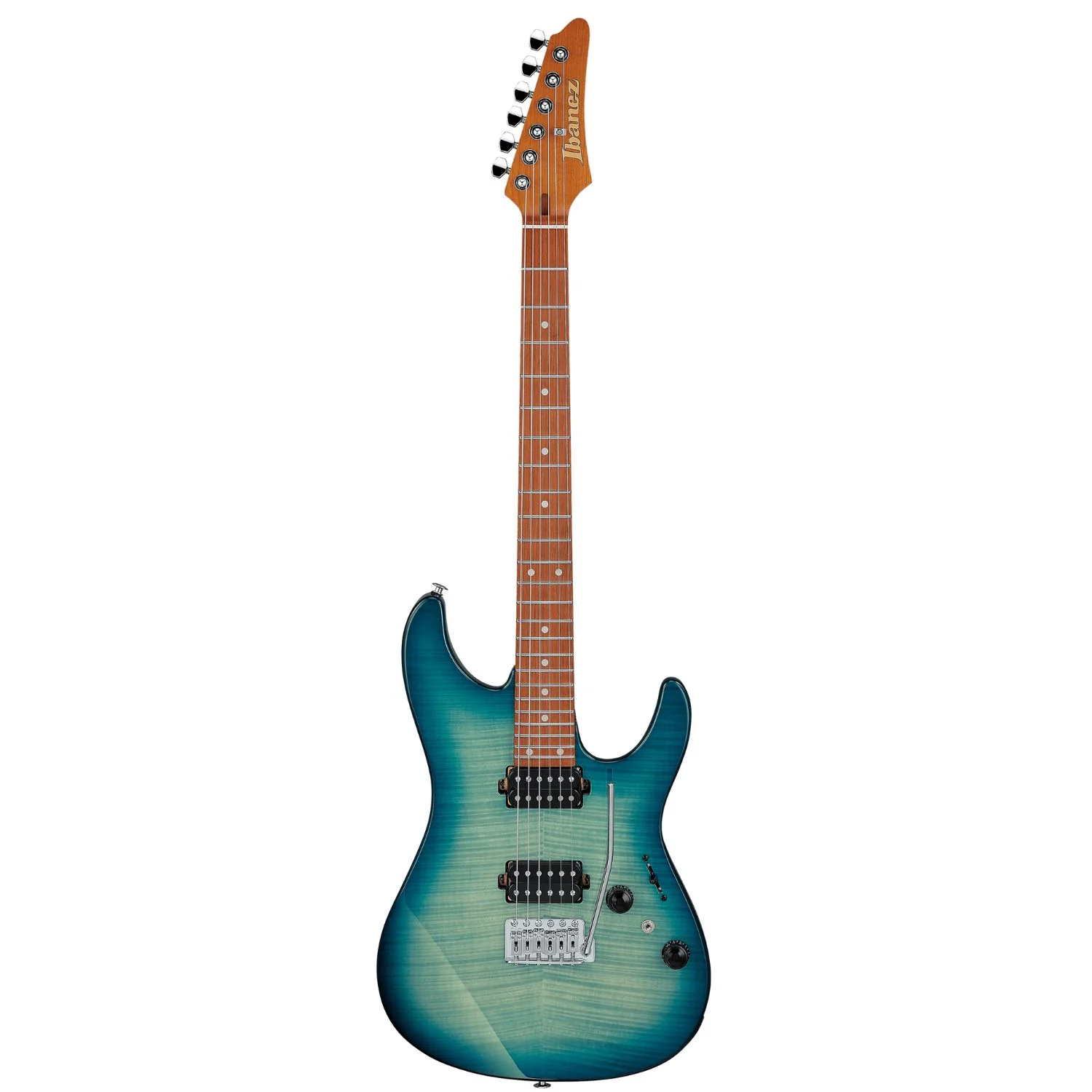

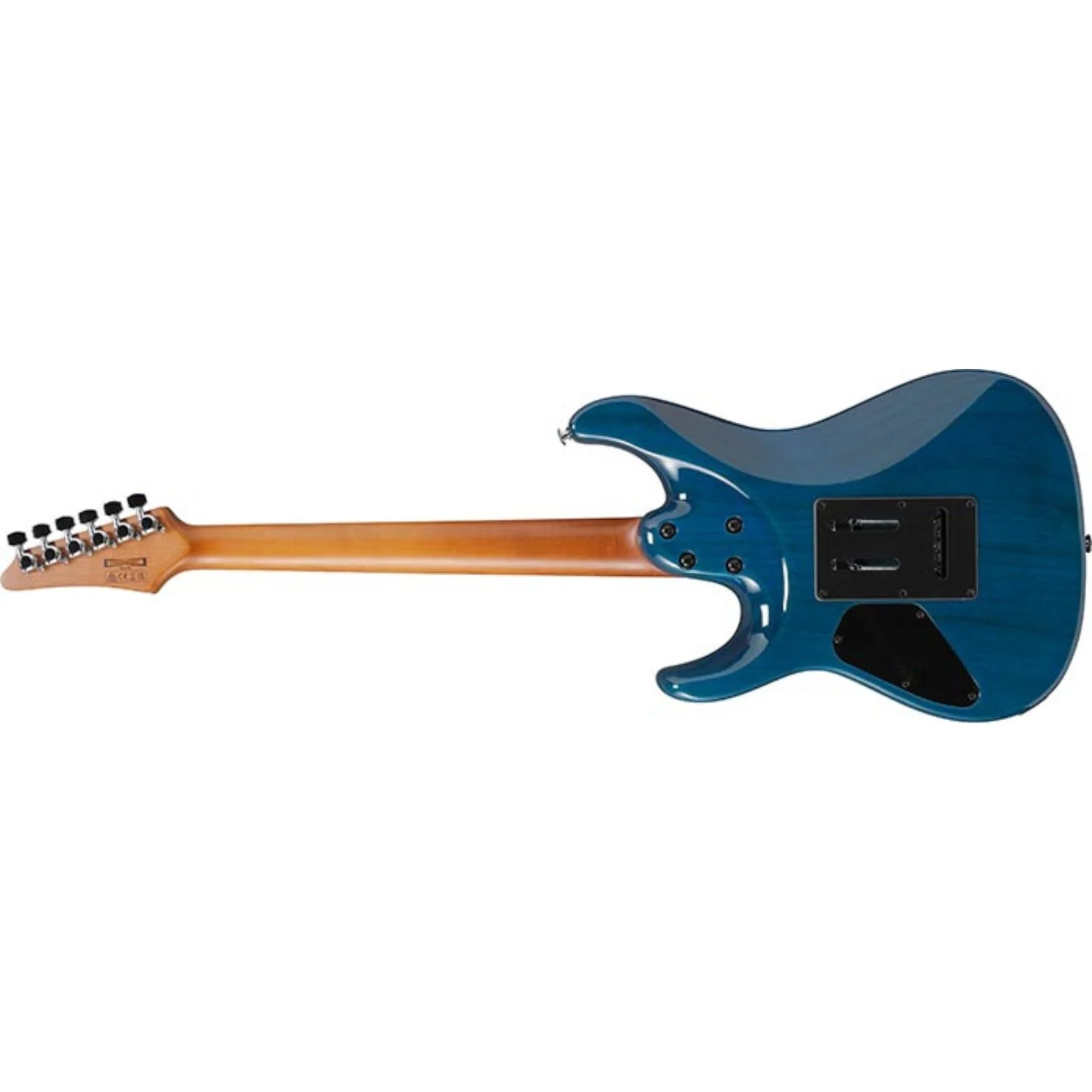

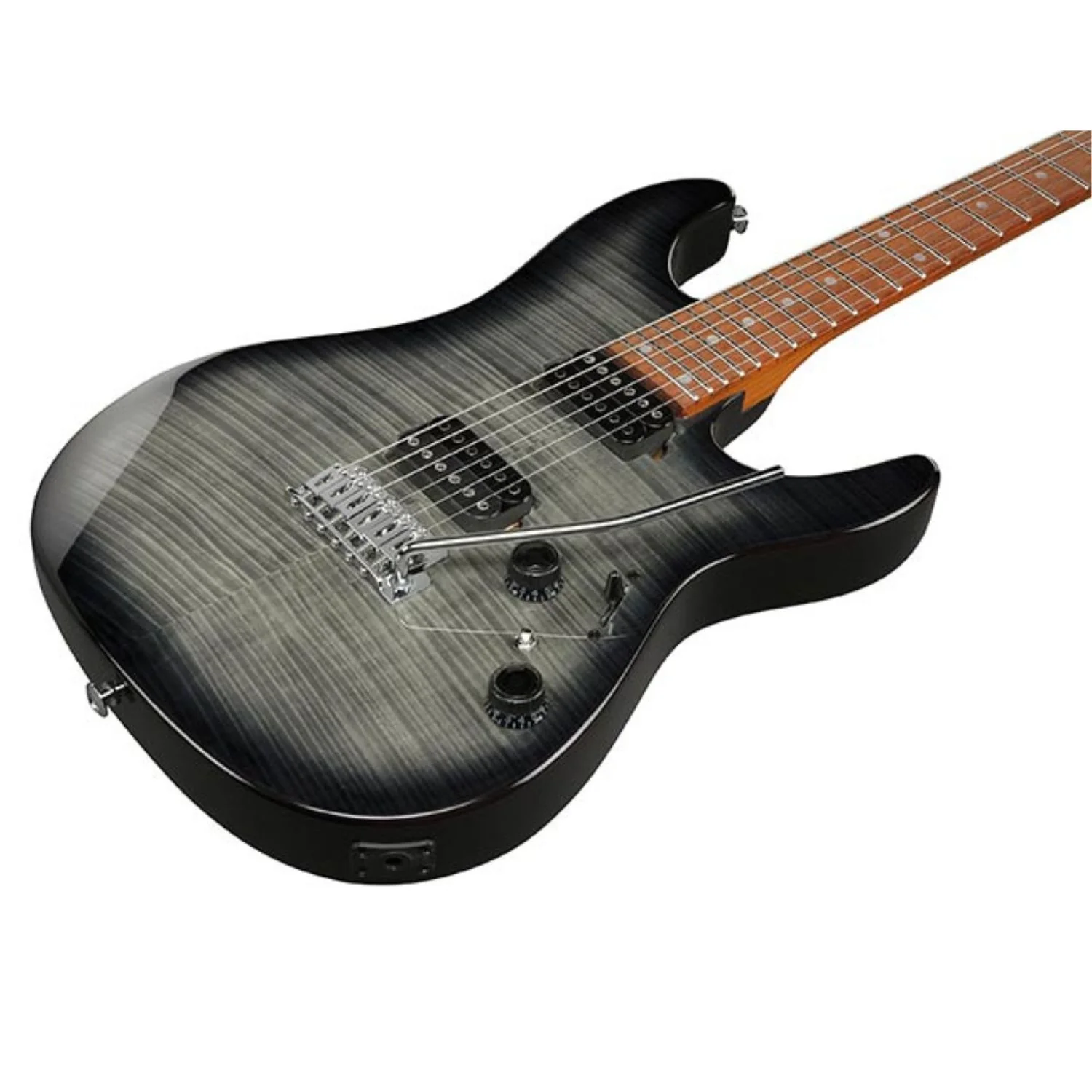

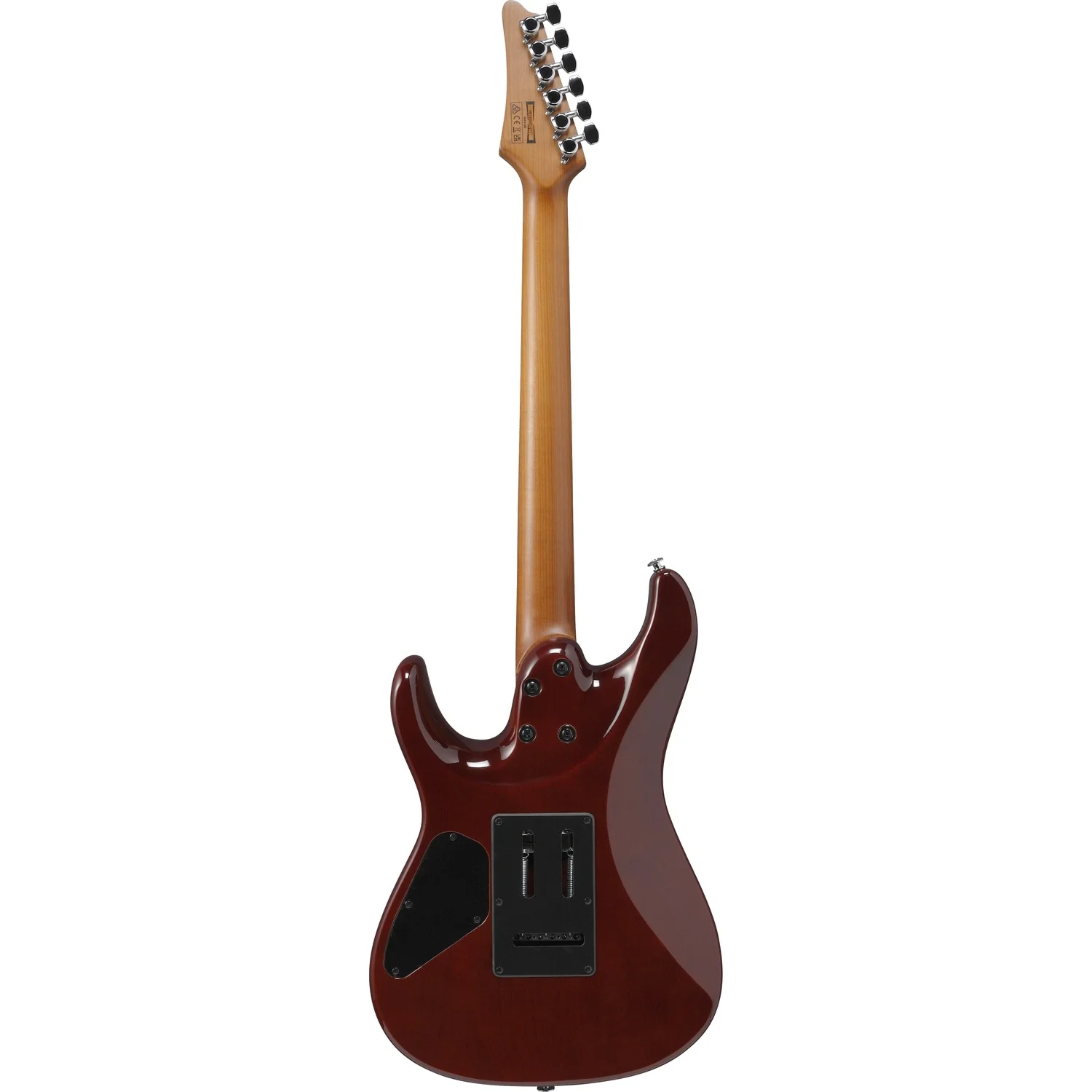

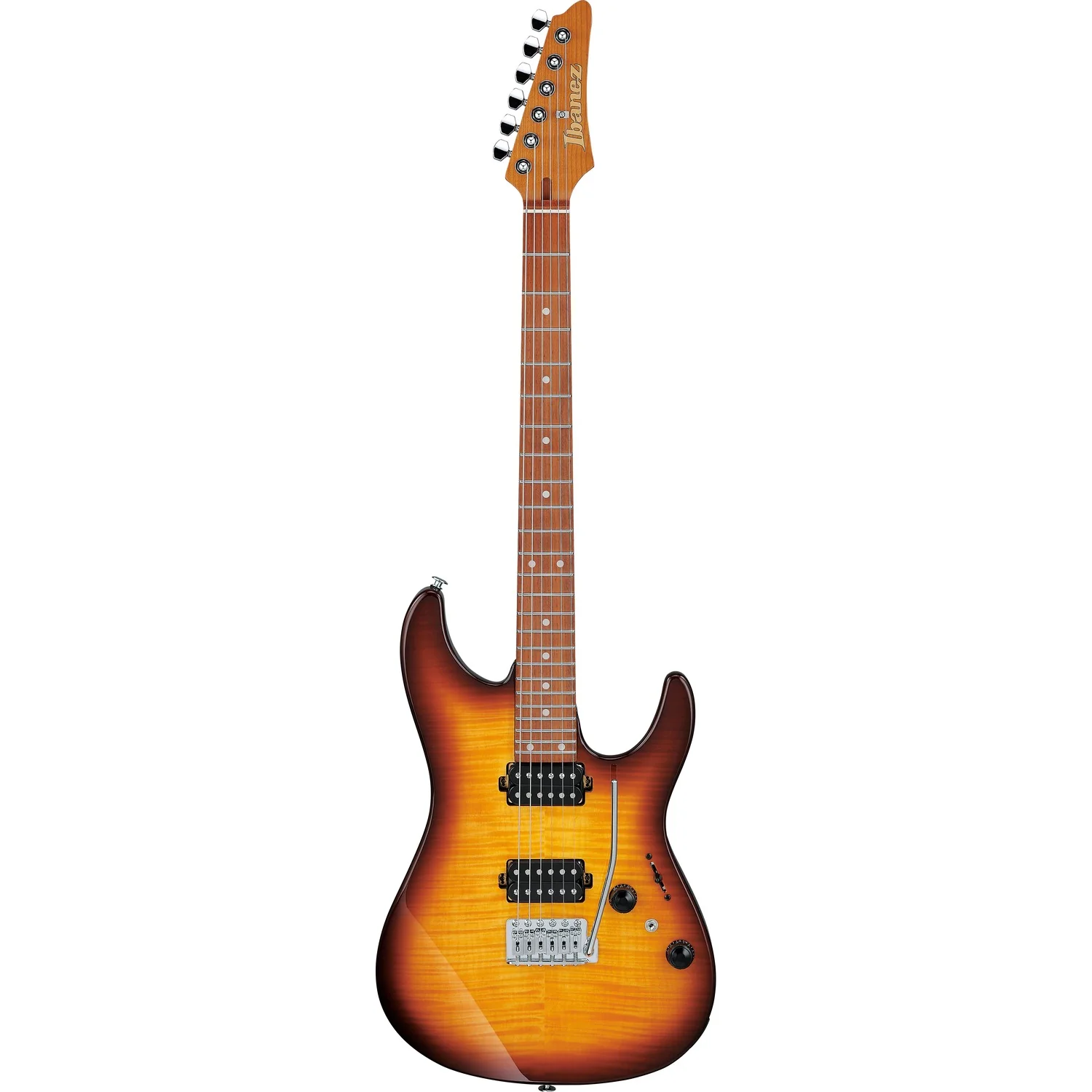

Ibanez AZ24S1F AZ Series 6 String Electric Guitar

Ibanez AZ24S1F AZ Series 6 String Electric Guitar Overview:

Ibanez builds guitars for players of all levels—from beginners to the most demanding masters of the instrument. Regardless of price, Ibanez always strives to offer the absolute best sound, style, and playability in its class. The Standard series incorporates all the staples the Ibanez brand is famous for, such as fast necks, floating trems, and high-octane distortion in a package that is available and accessible to most players.

Features:

Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

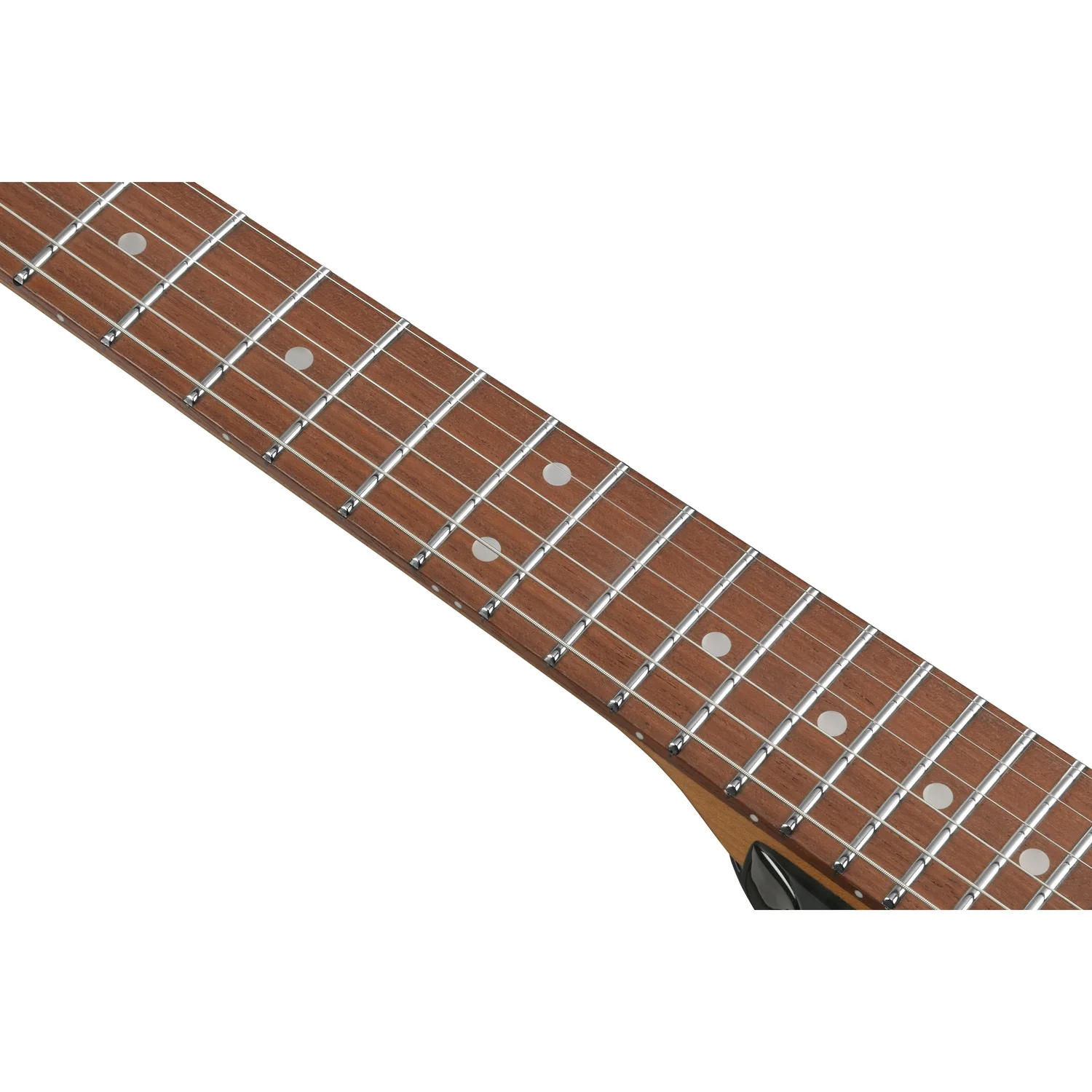

Jatoba fretboard
Jatoba has a reddish brown color and produces a rich mid range with a crisp high end.











Jumbo Stainless Steel frets
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

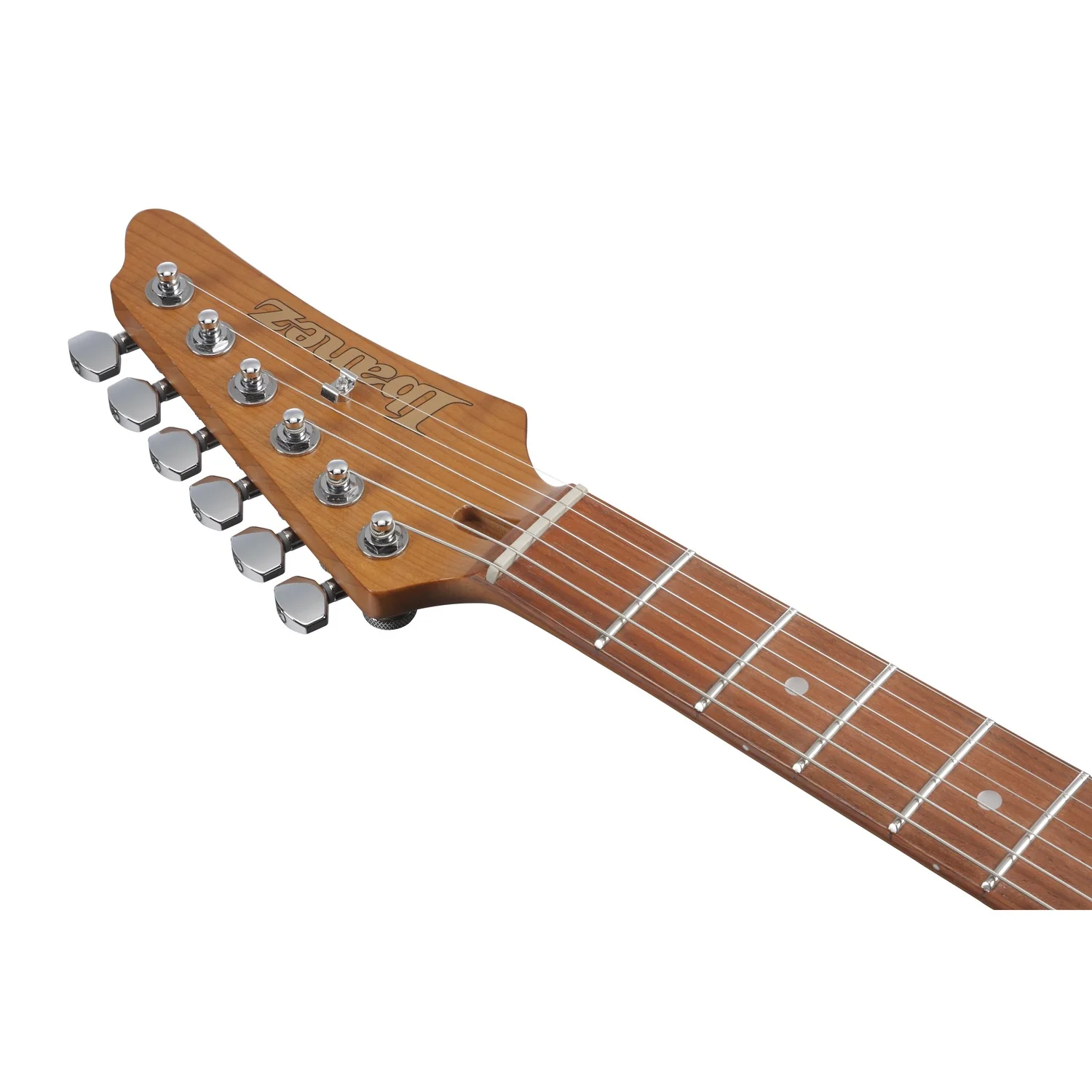

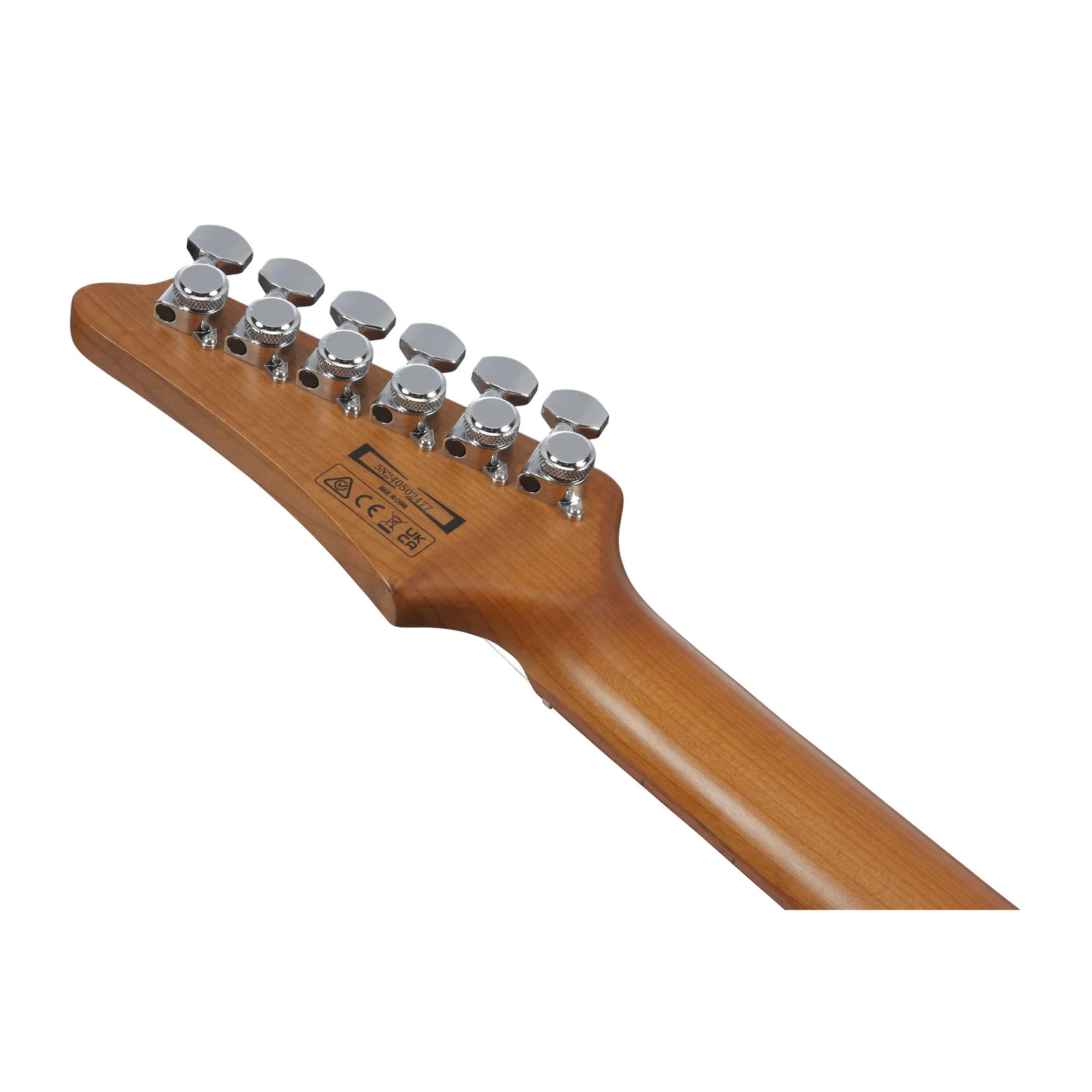

Locking machine heads
Locking machine heads ensure accurate and stable tuning.

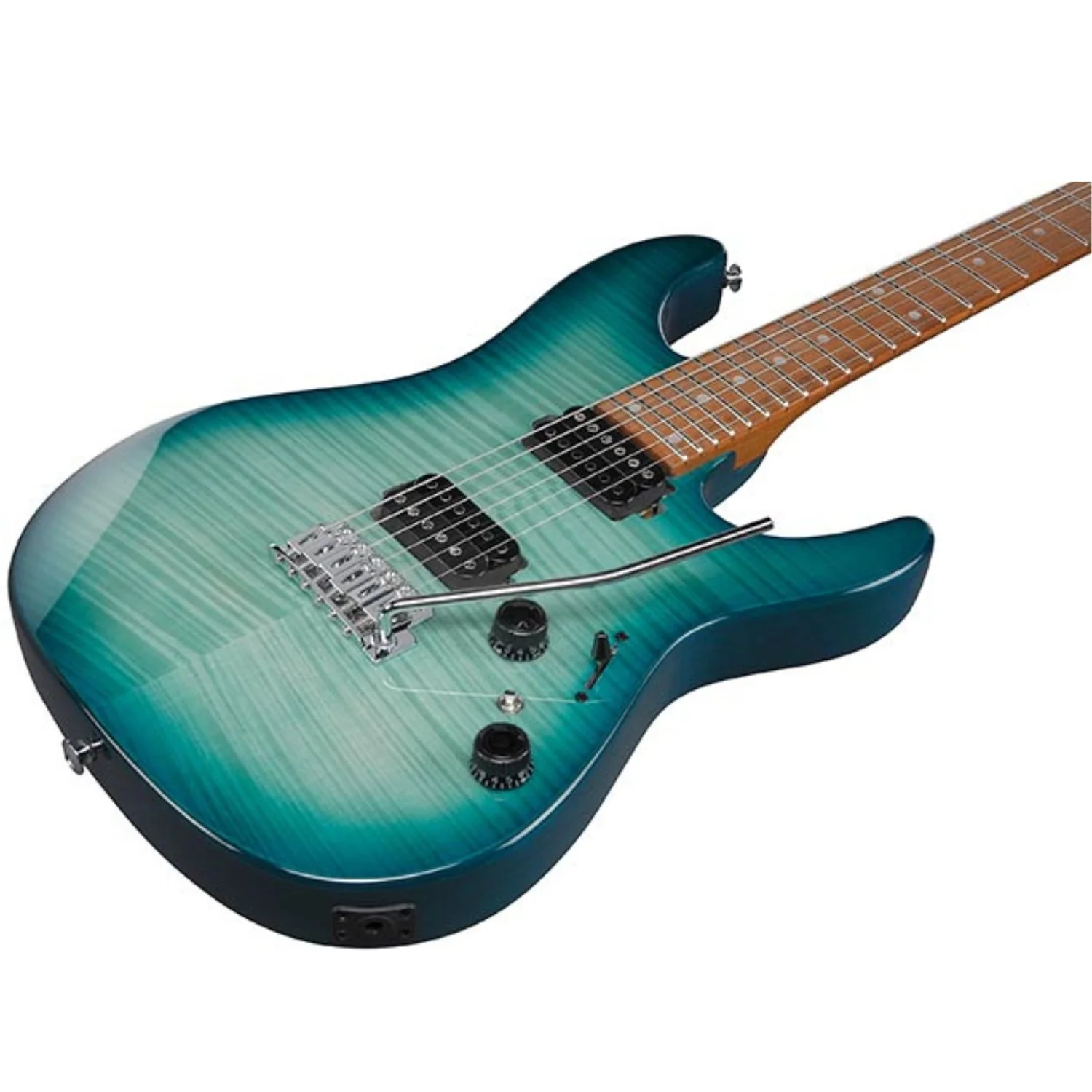

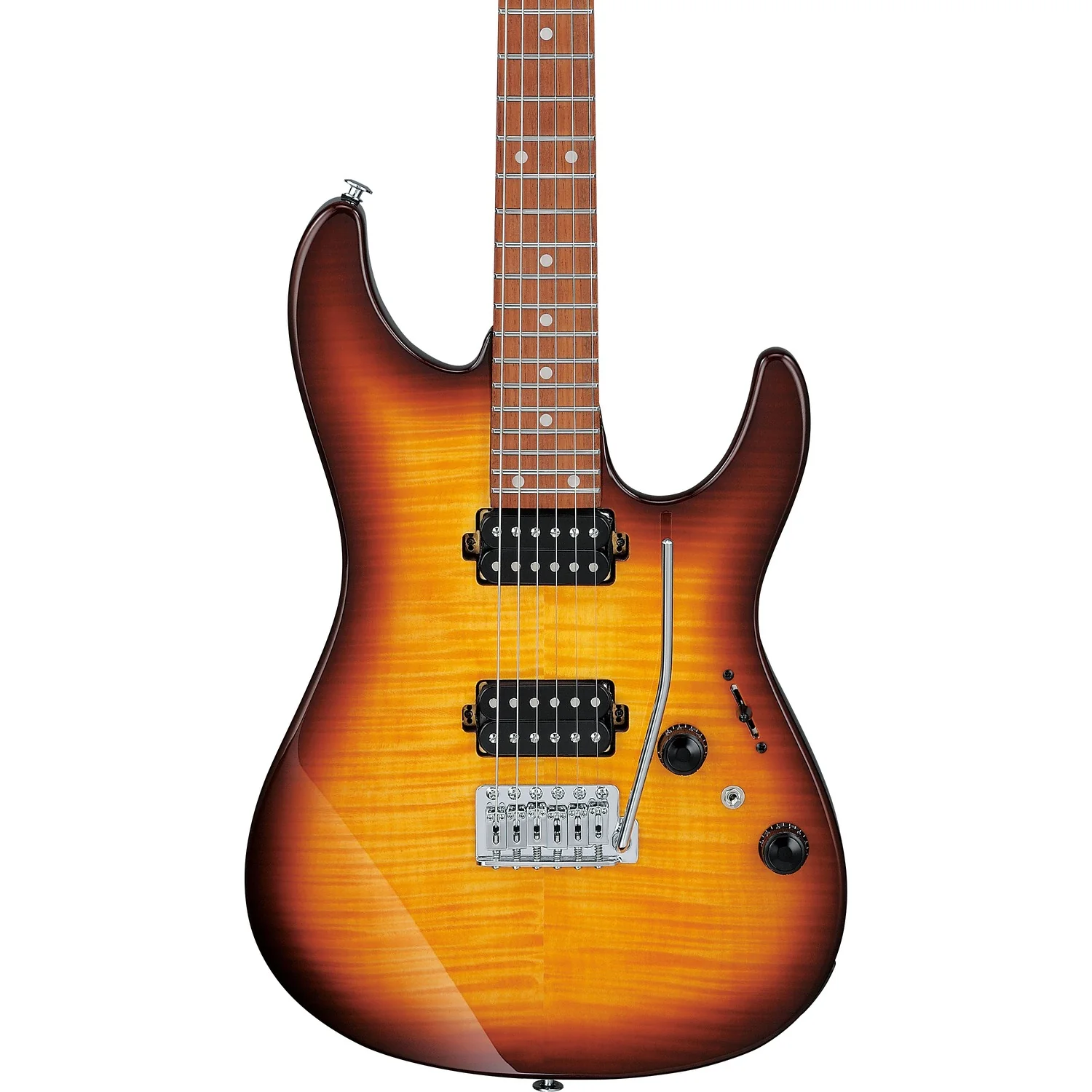

Flamed Maple top / Alder body
The Flamed Maple top displays a beautiful wood grain. The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.







Ibanez Modern Custom pickups
Ibanez Modern Custom pickups feature a dual humbucker configuration with alnico V magnets. They offer powerful tone and a quick response, which pair especially well with overdrive and distortion.

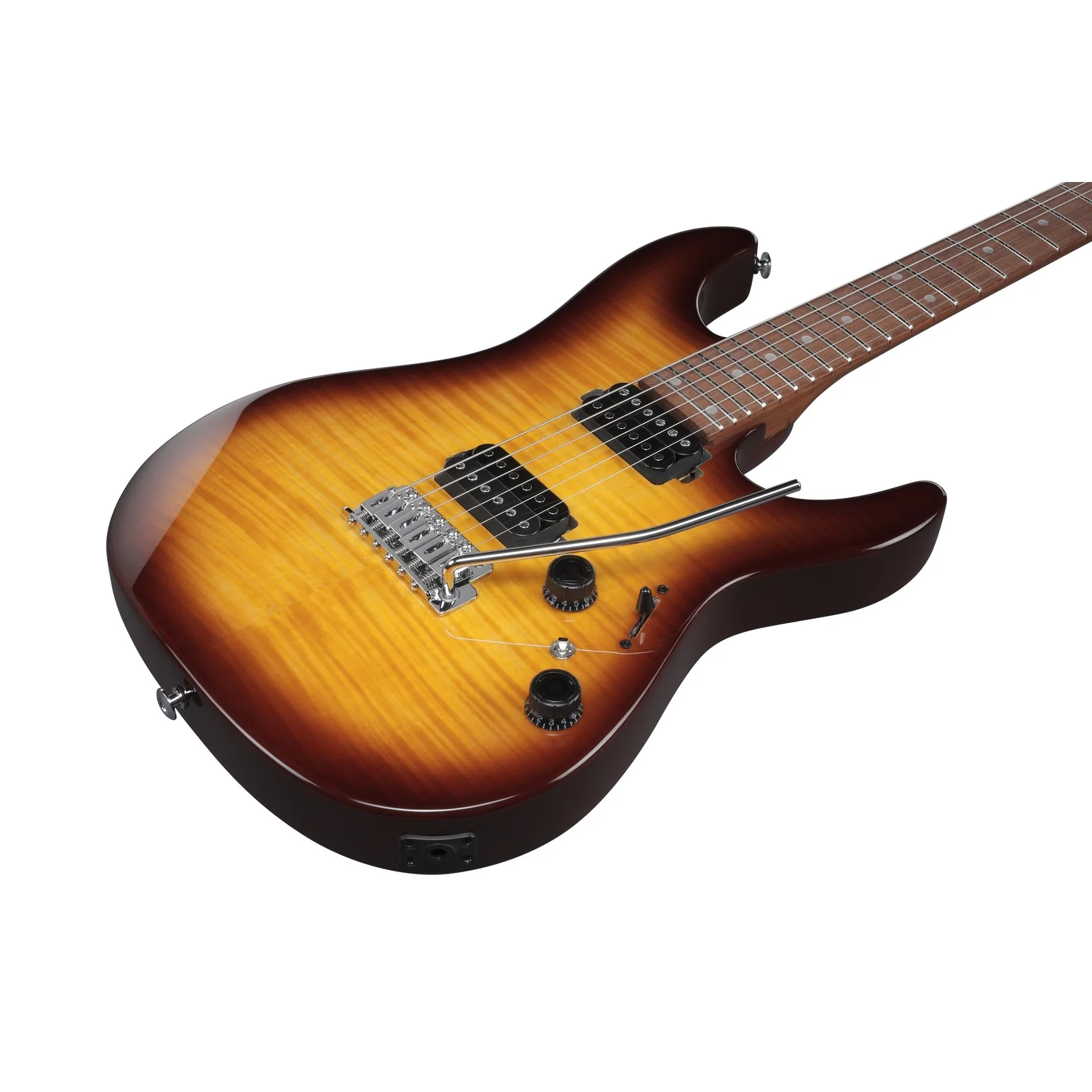

T106 tremolo
The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.









dyna-MIX10 switching system with Alter Switch
The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.







Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.









Specifications:

• neck type: AZRoasted Maple neck

• top/back/body: Flamed Maple topAlder body

• fretboard: Jatoba fretboardWhite dot inlay

• fret: Jumbo Stainless Steel frets

• number of frets: 24

• bridge: T106 bridge

• string space: 10.5mm

• neck pickup: Ibanez Modern Custom (H) neck pickupPassive/Alnico

• bridge pickup: Ibanez Modern Custom (H) bridge pickupPassive/Alnico

• factory tuning: 1E,2B,3G,4D,5A,6E

• string gauge: .010/.013/.017/.026/.036/.046

• hardware color: Chrome

NECK DIMENSIONS

• Scale : 648mm/25.5"

• a : Width: 42mm at NUT

• b : Width: 57mm at 24F

• c : Thickness: 20.5mm at 1F

• d : Thickness: 22.5mm at 12F

• Radius : 305mmR
