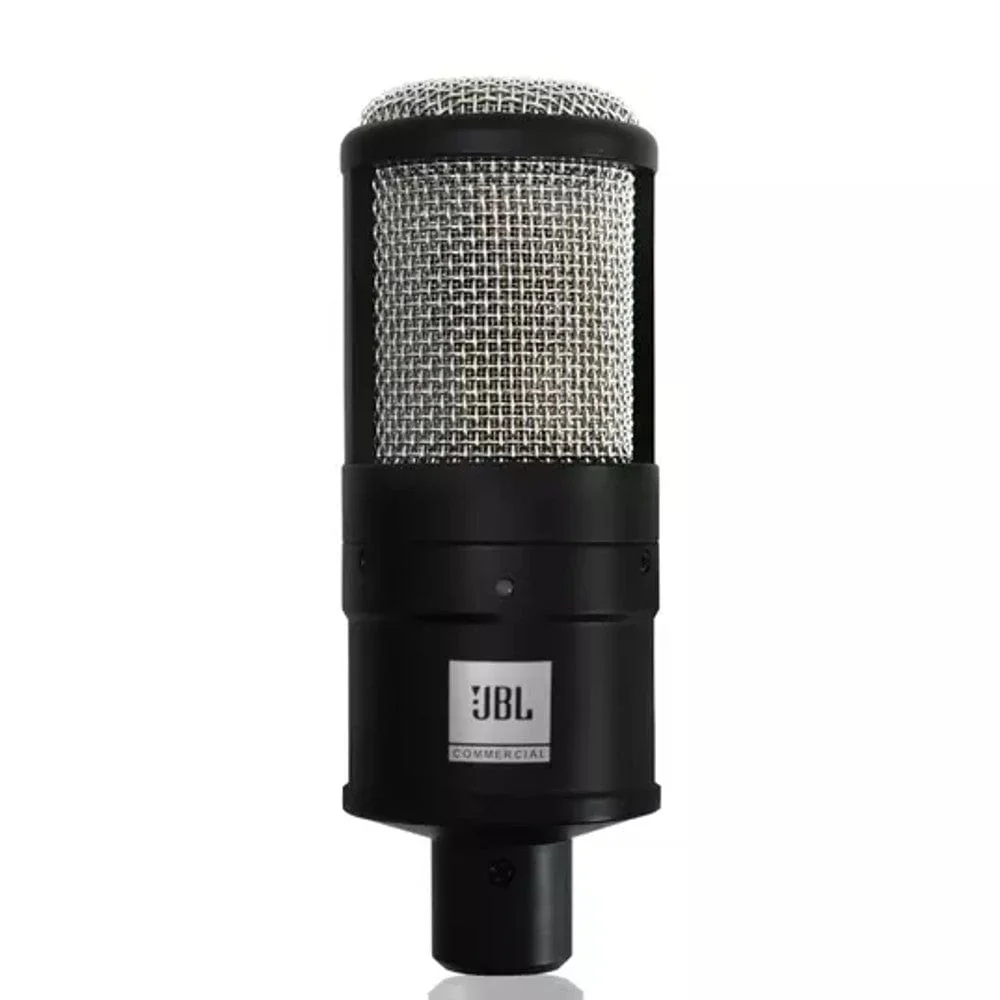

JBL CSSM100 Studio Condenser Microphone

JBL CSSM100 Studio Condenser Microphone Overview:

JBL Commercial CSSM100 Studio Condenser Microphone is a general purpose Condenser Microphone that is ideal for Recording & On-Stage purposes. It can be used to record, both, vocals and instruments. With features like rugged metal body, hypercardioid pickup pattern, and a wide frequency response, you will #SoundYourBest with the CSSM100. The microphone uses a condenser capsule designed for 48-volt phantom powering & needs an external power supply.

Specification

• Transducer: 14mm Condenser Capsule
• Polar Pattern: HyperCardioid
• Frequency Response: 20Hz – 20KHz
• Sensitivity: -36dBV ±3dB (0dB=1V/Pa at 1KHz)
• Equivalent Noise Level: ≤24dBA
• Peak SPL: 110dB (THD≤ 1% at 1KHz)
• Electrical Impedance: 100Ω
• Temperature Range: -40 – 55° C
• Phantom Powering: +48V ±4V
• Current Consumption: 3 mA

Dimensions

• Dia. 54mm: Yes
• Length 148mm: Yes
• Net Weight: 383g
