JBL PRX612M/230 Two Way Powered Speaker - Open Box B Stock

JBL PRX612M/230 Two Way Powered Speaker

Open Box Gear are products returned by customers, and are inspected and certified by Bajaao to be in full working order. Products may have minor scratches, dents, missing or damaged original box, or missing manuals, cables or accessories. Please review each product's specific condition listed below. All Open Box sales are final.

Open Box deals are great for those willing to overlook minor cosmetic flaws, for a fully functional product at a discounted price

#10007

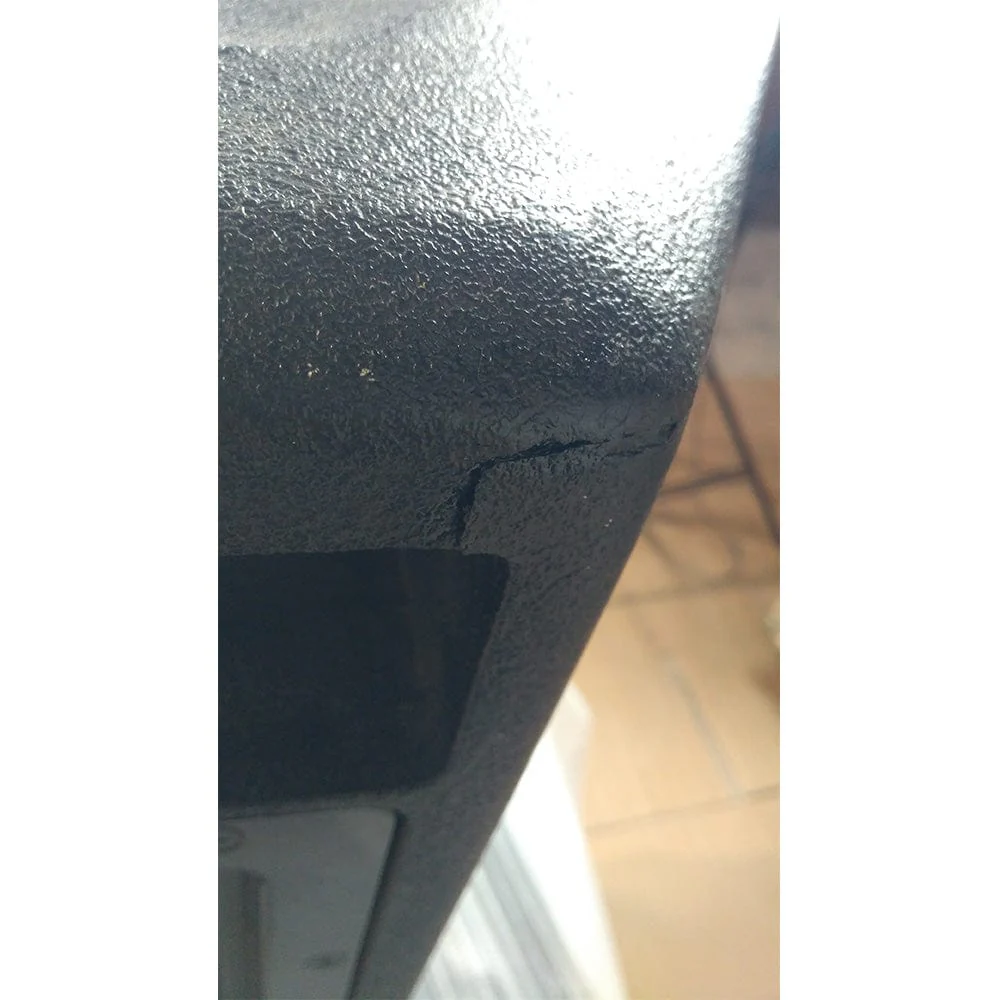

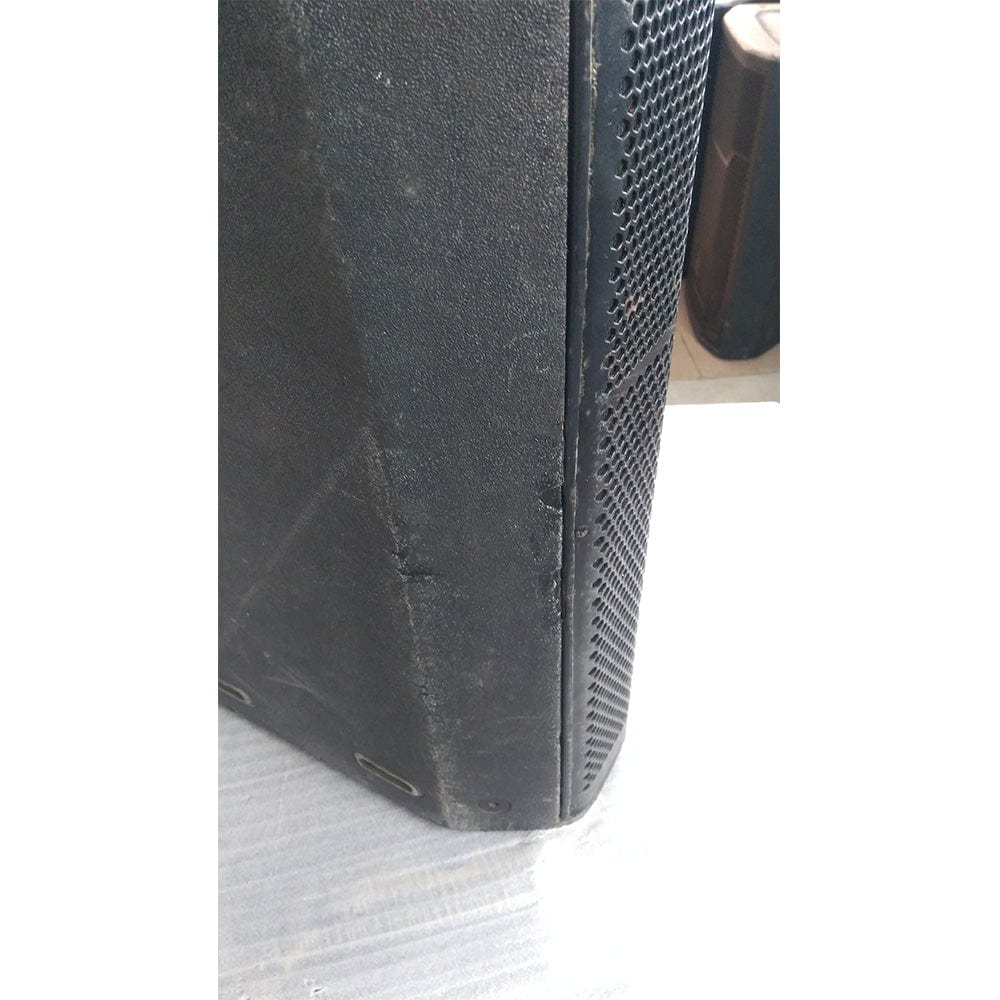

Condition: Body Damage

#10008

Condition: Body Damage

#10009

Condition: Body Damage

#All

PRX612M is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX612M is a perfect match with a PRX618S subwoofer, offering a high performance self-powered sub/sat system. The PRX612M is comprised of a 305 mm (12in) 265F Differential DriveŒ¬ woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90ŒÁ by 50ŒÁ horn, all driven by 1000 watt (dual 500 watt) CrownŒ¬ Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization. All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBLäó»s tour proven DuraFlex䋢 finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each. The amplifier input panel offers XLR or Œ_ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.

JBL PRX612M/230 Two Way Powered Speaker Features:

• Maximum SPL 134db peak
• Dual purpose enclosure for both front-of house and floor monitor applications
• Eight M10 fly points for horizontal or vertical suspension. One M10 pull-back point
• Optimized EQ for monitor or front-of-house applications
• 305mm (12 in) Differential DriveŒ¬ dual voice-coil and magnetic gap, neodymium woofer
• 37.5mm (1.5 in) annular polymer diaphragm, neodymium, compression driver
• 1000 Watt (Dual 500 watt) Class-D, CrownŒ¬ amplifier
• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
• Professional XLR line and Œ_" Mic/Instrument inputs, with loop through
• Dual-angle pol\n
• Dual-angle pole mount socket
\n

\n

JBL PRX612M/230 Two Way Powered Speaker Specifications:

\n

\n
• System Type: Self-powered 12",two-way, bass-reflex
• Maximum SPL Output: Full Range: 134 dB peak Monitor: 133 dB peak
• Frequency Range (-10 dB):Full Range: 50 äóñ 20 kHz Monitor: 51 äóñ 20 kHz
• Frequency Response (Œ±3 dB):Full Range: 60 äóñ 17.5 kHz Monitor: 61 äóñ 18.5 kHz
• Coverage Pattern:90Œ_ x 50Œ_ nominal
• Amp Design:CrownŒ¬ Class D
• Power Rating:1000 W ( 2 x 500 )
• Dimension (H x W x D):592 mm x 353 mm x 340 mm ( 23.3 in x 13.9 in x 13.4 in )
• Net Weight:15.6 kg ( 34.5 lb )
