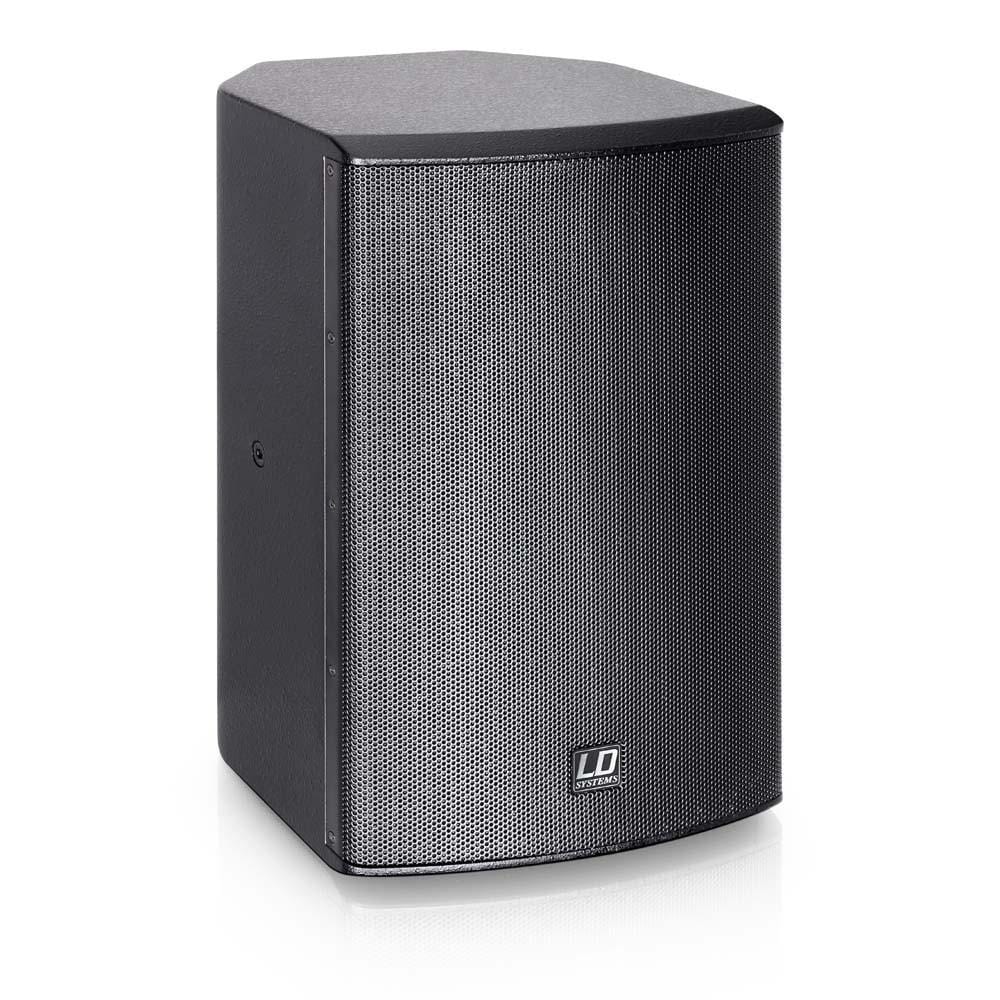

Ld System 8" Active Installation Monitor - Black Overview:
The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.
The compact 2-way bass reflex design is equipped with an 8" custom-made woofer and a 1" compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz - 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.
The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.
Features:
- Compact active 2-way installation monitor
- Ideal for bars, restaurants, shops, as a home recording monitor and PC speaker
- 8" custom-made woofers
- 1" high frequency driver with a 60° x 60° dispersion angle
- Integrated Class AB power amplifier with 80 watts (RMS)
- Switchable automatic power save mode
- Mounting bracket and M6 fixing points for a wide variety of installation possibilities
Specifications:
- Product type: Installation Loudspeakers
- Type: Wall-mounted Loudspeaker
- Low/mid driver dimensions: 8 "
- Woofer size: 203.2 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- HF driver dimensions: 1 "
- HF Driver Size: 25 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- Power amplifier (Class A): Class A/B
- Dispersion (H x V): 60° x 60
- RMS: 80 W
- Frequency response: 50 - 20000 Hz
- Max. SPL: 114 dB
- Protection circuits: HF Driver , over voltage
- Controls: mains switch (on/off) , volume
- Indicators: overload , Power
- Line input connectors: 6.3 mm jack , XLR
- Line output connectors: XLR
- Operating voltage: transformer
- Operating voltage: 220 V AC - 240 V AC, 50-60 Hz
- Cabinet material: 12 mm MDF
- Cabinet surface: texture paint
- Cabinet colour: Black
- Cabinet construction: Bass Reflex
- Width: 274 mm
- Depth: 243 mm
- Weight: 8,5 kg
Made in China
