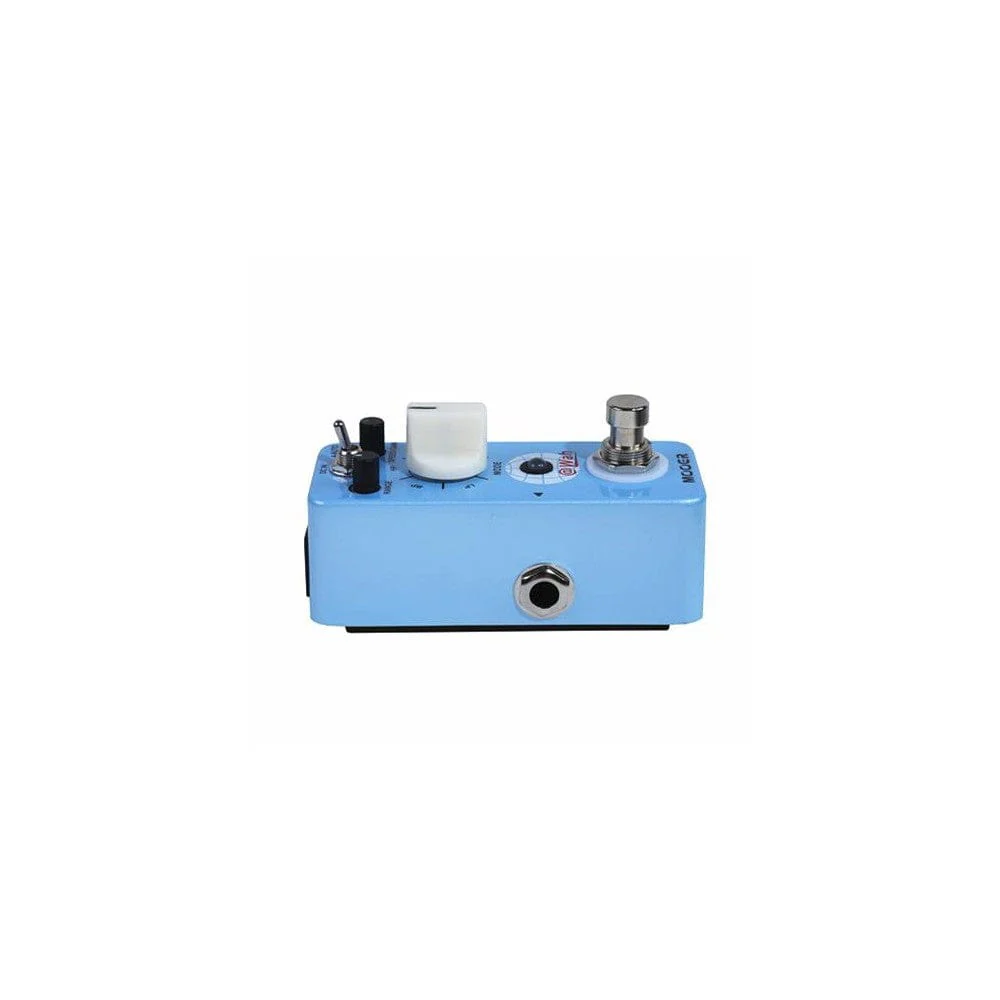

Mooer WAH Digital Auto Wah Guitar Effect Pedals

Mooer WAH Digital Auto Wah Guitar Effect Pedals Overview:

WAH brings together 4 very different Wah sounds and a cool Talk effect into one small pedal. It has two main modes of operation; Auto which is time based and Touch which responds to the dynamics of the musicians instrument. The 3 controls provide great manipulation of the tonal qualities of the pedal.

Features:

• Operation method switch: 'AUTO' is a time based filter. 'Touch' responds to the dynamics of the instrument.
• MODE control: Selects the filter mode and simultaneously adjusts the MIX and ATTACK of the filter.
• The 5 filter modes are listed below:
• LP (Low pass)
• BP (bandpass)
• HP (high pass)
• SP (Standard)
• TALK (vocal)
• RANGE:Adjusts the tonality of the filter
• SPEED / GAIN: Adjusts the rate of the 'AUTO' wah or the input response of the 'TOUCH' wah

Specifications:

• Input：1/4” mono audio jack.（Impedance: 470k Ohms)
• Output：1/4” mono audio jack（Impedance: 100 Ohms)
• Power requirements: AC adapter 9V DC ,center negative. Highly
• recommend to use Mooer Micro Power.
• Current Draw: 120mA
• Dimensions：93.5mm(D) x 42mm(W) x 52mm(H)
• Weight：140g

Made in China
