On-Stage DB200 Mini DI Box

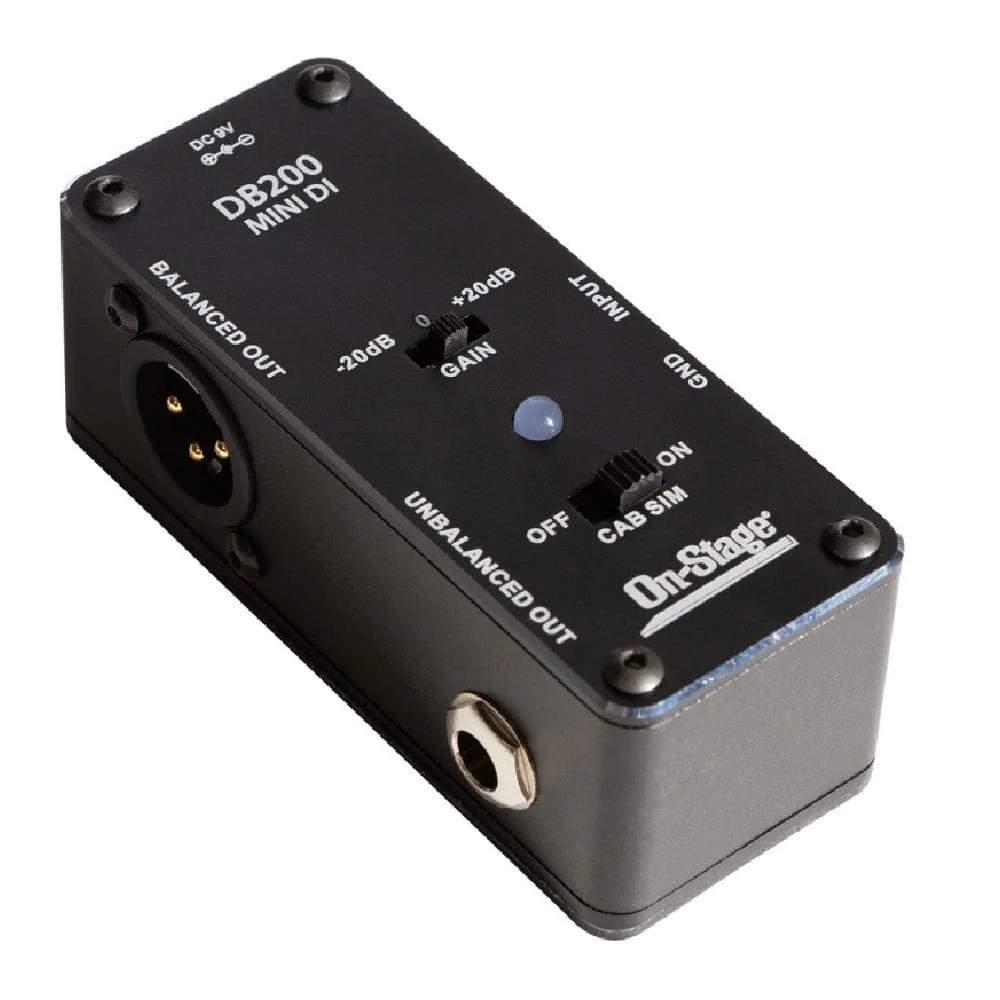

On-Stage DB200 Mini DI Box Overview:

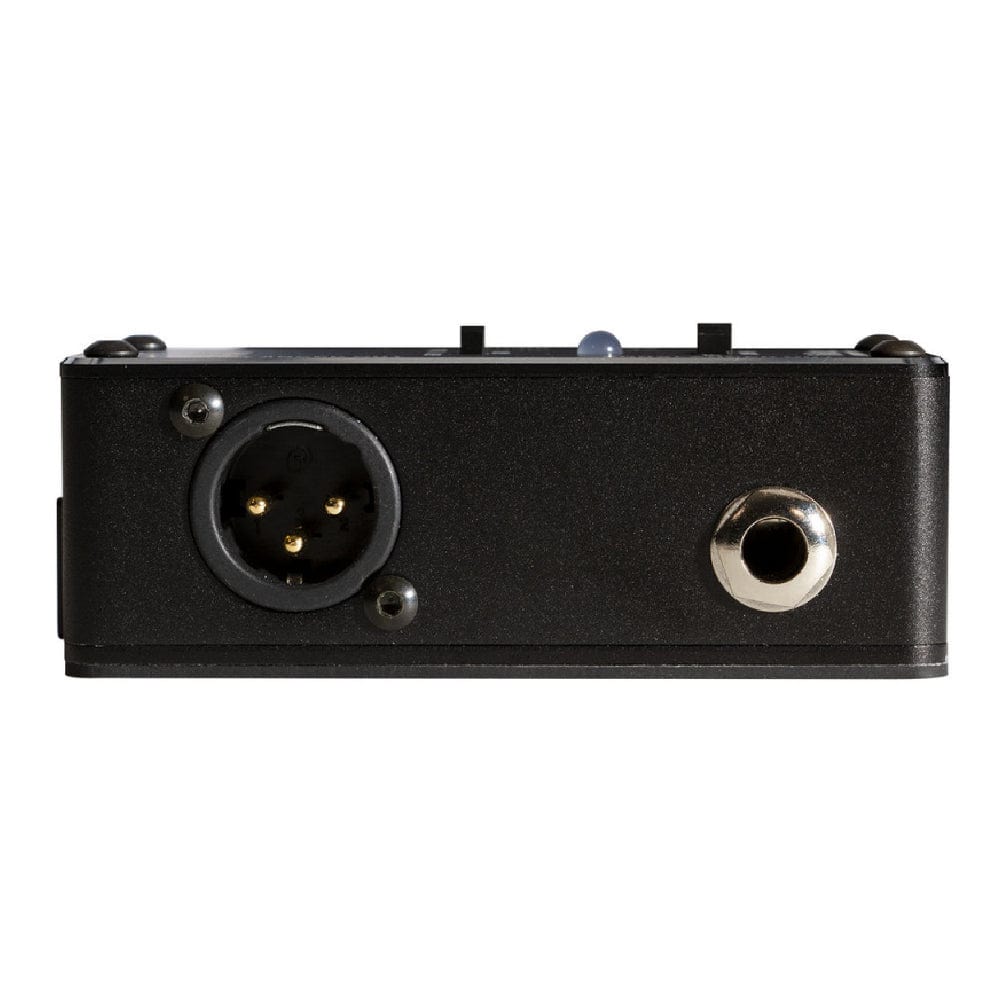

Our DB200 Mini DI Box converts any high-impedance 1/4" source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. A cab simulator switch enables sending the input signal through an emulated amp directly to a mixer without using a physical amp. There's a switch for either +20 dB of gain to boost weak signals or a -20 dB pad to prevent clipping from louder sources. A ground-lift switch defeats ground-loop hum. When not using the DI\n the true-bypass switch eliminates the circuitry of the pedal from the signal path. Balanced and unbalanced outputs provide the option to send the signal to an amp\n a mixer\n or both. This pedal includes hook-and-loop strips for convenient pedalboard mounting. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

\n

\n

Features

\n

\n
• Accepts a wide range of audio sources including guitars\n basses\n and keyboards
\n
• Compact footprint saves space on pedal boards (includes hook-and-loop mounting strips)
\n
• Cab simulator sends the input signal through an emulated amp to a mixer or PA system
\n
• Gain/pad switch boosts weak signals or prevents clipping
\n

\n

\n

Specifications

\n

\n
• Input Impedance: 1M Ohms
\n
• Output Impedance: 1k Ohms
\n
• Current Draw: 12mA
\n

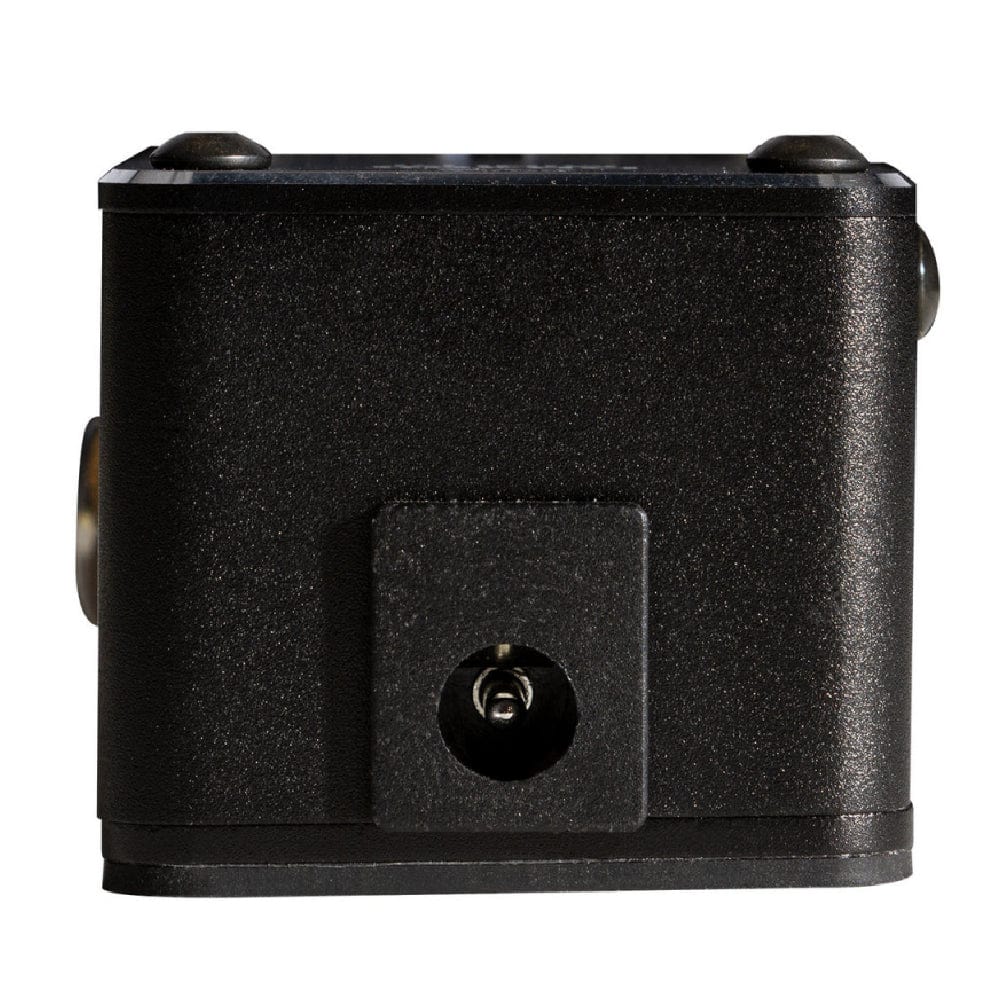

• Power Supply: 9V DC\n center negative (not included)
\n
• Dimensions: 3.6" x 1.5" x 1.3"
• Color: Black
