Proel HPC110 Coaxial Noiseless Instrument Cable

Proel HPC110 Coaxial Noiseless Instrument Cable Overview:

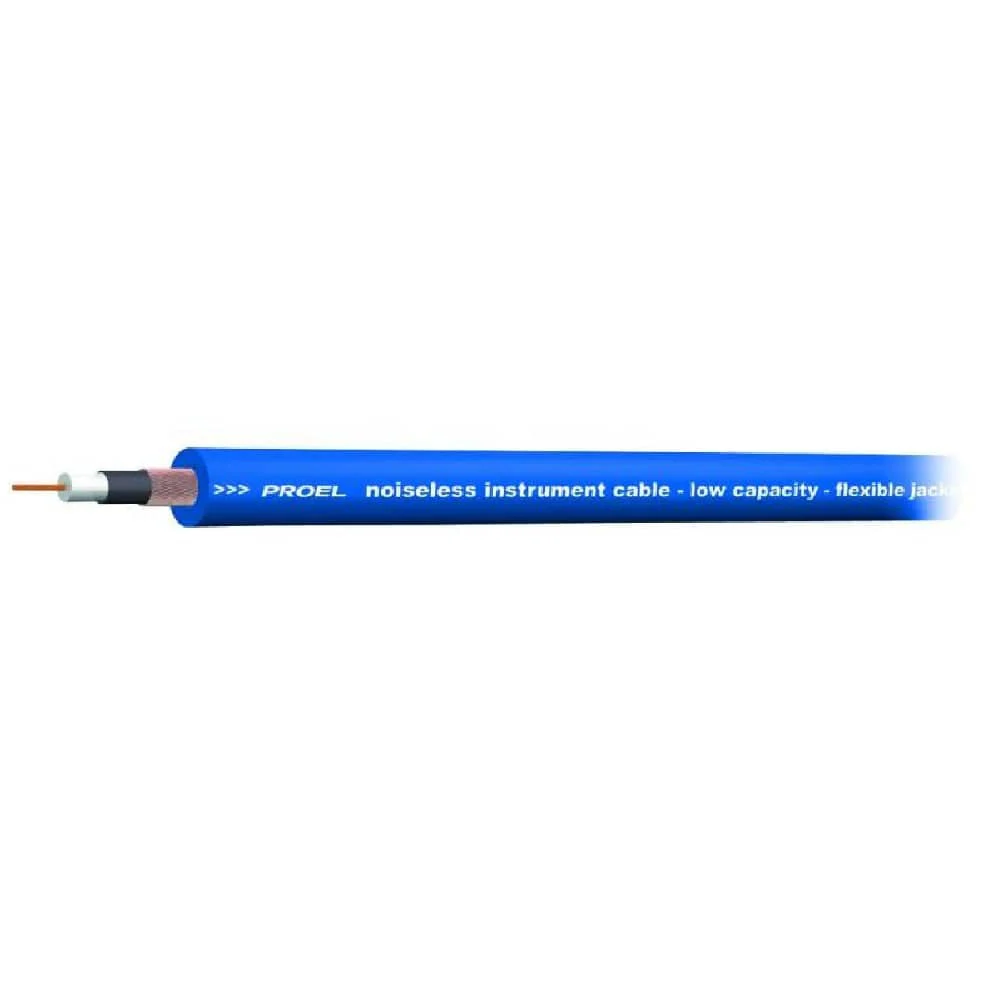

Coaxial cable featuring a very thick pure copper shield, designed for connecting guitars, keyboards, amplifiers, mixers, effect pedals and any audio signal processing devices. Very low capacitance, strong and flexible overall jacket, double shielding with conductive thermoplastic material and very thick upper copper spiral. A thick PE insulation makes it an ideal cable for all applications liable to mechanical tensions of the cable (e.g. guitar/amplifier connection). Available colors: Black, Blue, Red

Features:

Application fields: Musical instrument connection / Multieff ect/mixer connection

Conductors: Bare copper - 23 AWG = 30 x 0.10 mm (0.25 mm2)

Insulation: PE 1.8 mm

Shield: (cable) Spiral Flexible copper 16x3x0.10 95%

Jacket:

Conductor: High-conductive graphite jacket Ø 2.40 mm

Cable: Flexible PVC 60 shore 6.40 mm

Color: Black,Blue and Red

Electrical resistance: 74 Ohm/Km (conductor) @ 20°C

Electrical capacitance: 120 pF/m (conductor/shield) @ 1 KHz

Velocity of propagation: 80 %

Operating temperature: -20°C / +70°C

Working tension:

< 50 V AC

< 75 V DC

Minumum bending radius: 20 x cable section radius

Made in China
