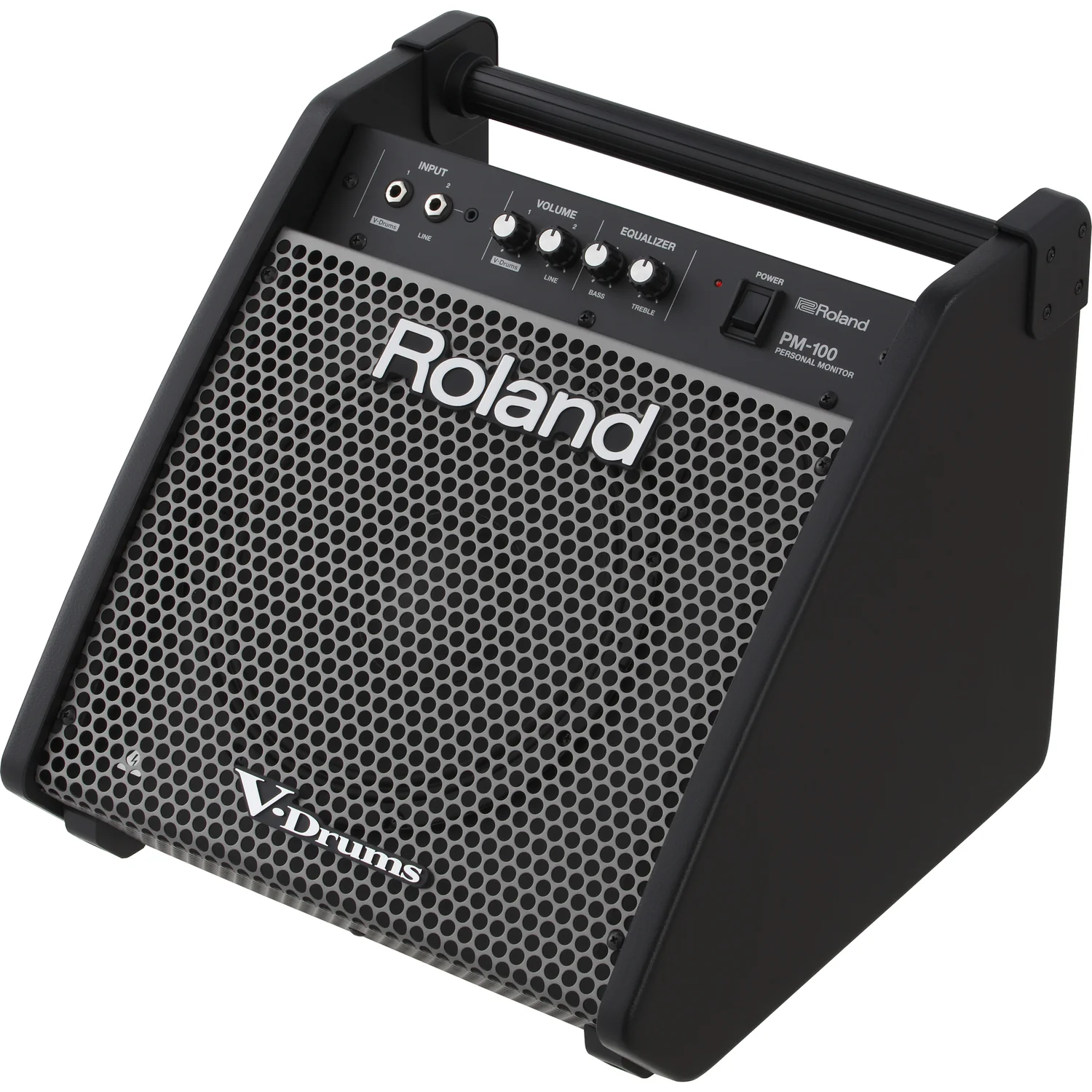

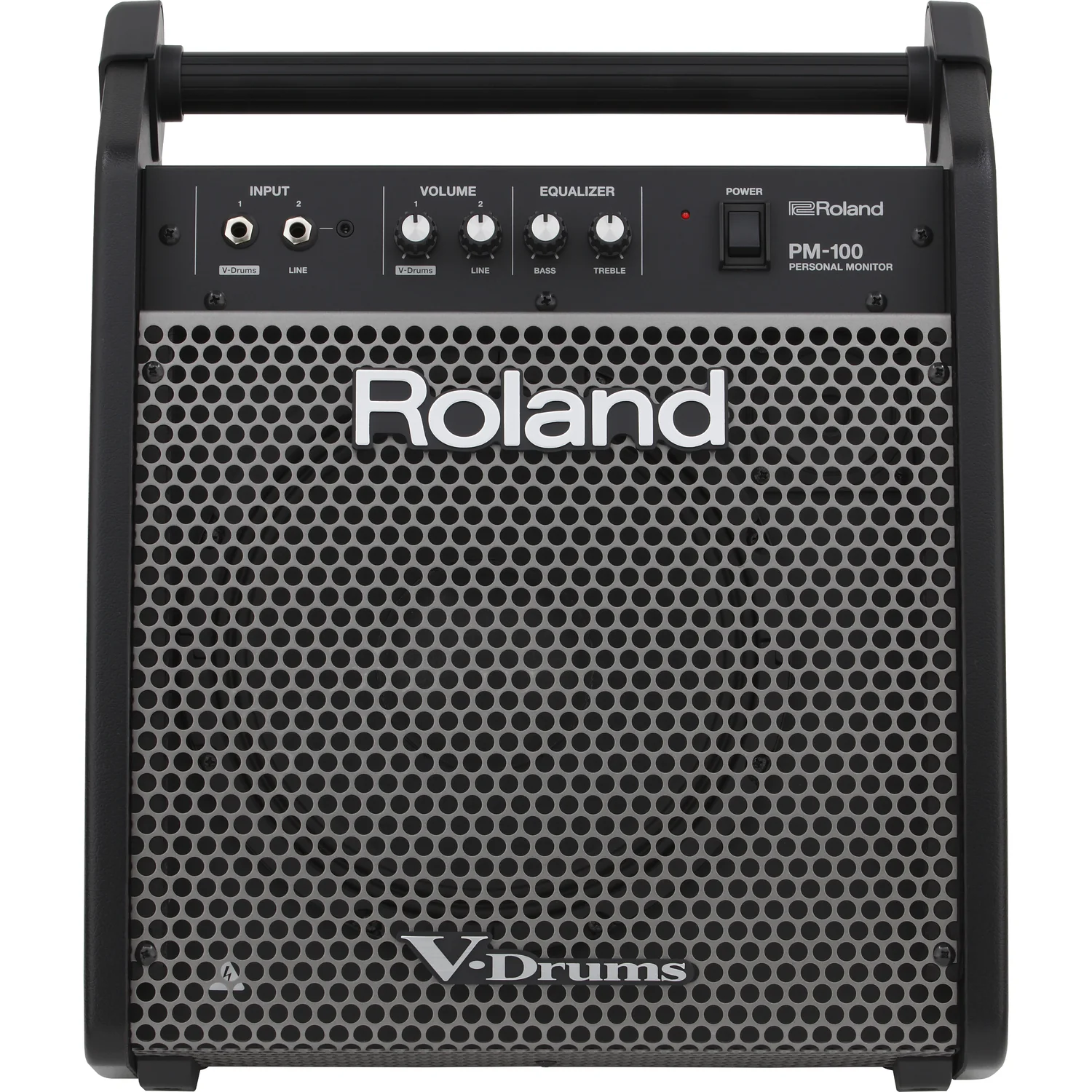

Roland PM-100 Electronic Drum Monitor

Roland PM-100 Electronic Drum Monitor Overview:

HIGH-RESOLUTION SOUND MONITORING, FINE-TUNED FOR ROLAND’S V-DRUMS
Delivering rich, dynamic sound from a minimal footprint, the PM-100 is the ideal compact monitoring solution for Roland’s V-Drums. Equipped with 80 watts of power, the PM-100 features a custom full-range speaker system and rugged cabinet specially optimized for reproducing the famously expressive V-Drums sound and response. And with onboard mixing capabilities, you’re able to connect music players and other devices for practice and enjoyment while playing at home.

Pro-Level Sound for Playing V-Drums
The PM-100 is the perfect complement to any V-Drums set. Its compact size is ideal for playing at home, and the powerful custom speaker system delivers rich, full-range sound with inspiring punch and presence. The front face is angled for optimal sound monitoring while seated at the V-Drums, and a full-width bar handle on top offers a convenient way to carry the monitor and adjust its floor position.

Versatile Onboard Mixing
With its integrated mixer, the PM-100 allows you to monitor backing music and external devices along with your kit. There’s a dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players. Independent volume controls are provided for the V-Drums and line input sections, and there’s also a two-band equalizer for shaping the overall sound.

Features:

• Premium all-in-one monitor designed for use with V-Drums electronic percussion products
• Full-range audio system with 80 watts of power, custom 10-inch speaker, and tweeter
• Angled design provides ideal sound coverage for the seated player
• Integrated mixer with independent volume controls and global EQ
• Dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players
• Unique full-width bar handle for easy floor adjustment and carrying convenience

Specifications:

• Rated Power Output: 80 W
• Nominal Input Level:
• V-Drums INPUT: -6 dBu (10 k ohms)
• LINE INPUT: -6 dBu (10 k ohms)
• Speaker: 25 cm (10 inches) Woofer x 1, 5 cm (2 inches) Tweeter x 1
• Controls:
• POWER switch
• V-Drums VOLUME knob
• LINE INPUT VOLUME knob
• BASS knob
• TREBLE knob
• Indicators: POWER
• Connectors:
• V-Drums INPUT jack: Stereo 1/4-inch phone type
• LINE INPUT jack: Stereo 1/4-inch phone type, Stereo miniature phone type
• AC IN jack
• Power Consumption: 36 WA
• Accessories:
• Owner's manual
• Power cord
• SIZE AND WEIGHT
• Width: 388 mm (15-5/16 inches)
• Depth: 407 mm (16-1/16 inches)
• Height: 354 mm (13-15/16 inches)
• Weight: 13.5 kg (29 lbs 13 oz)

Made in China
