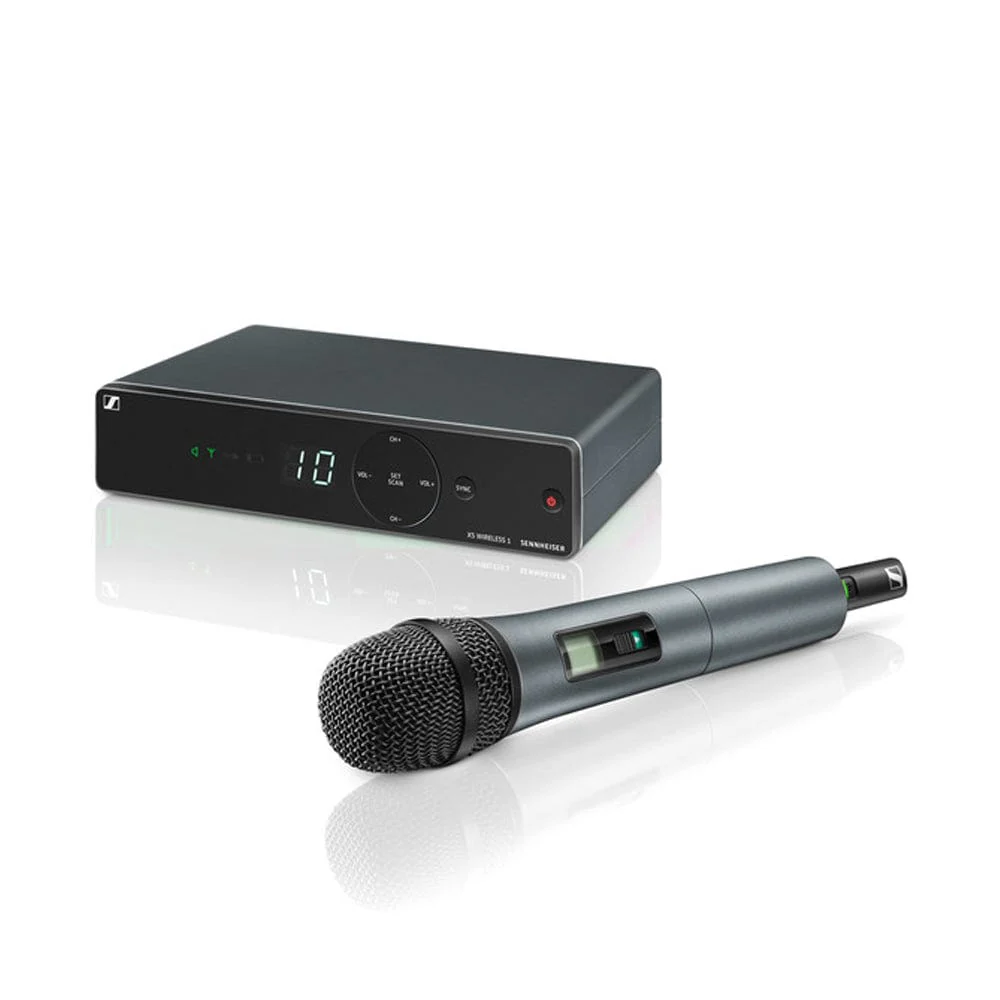

Sennheiser XSW 1-835 Wireless Vocal Microphone System

Sennheiser XSW 1-835 Wireless Vocal Microphone System Overview :

Raise your voice. Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Features :

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules e835
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

Contents included :

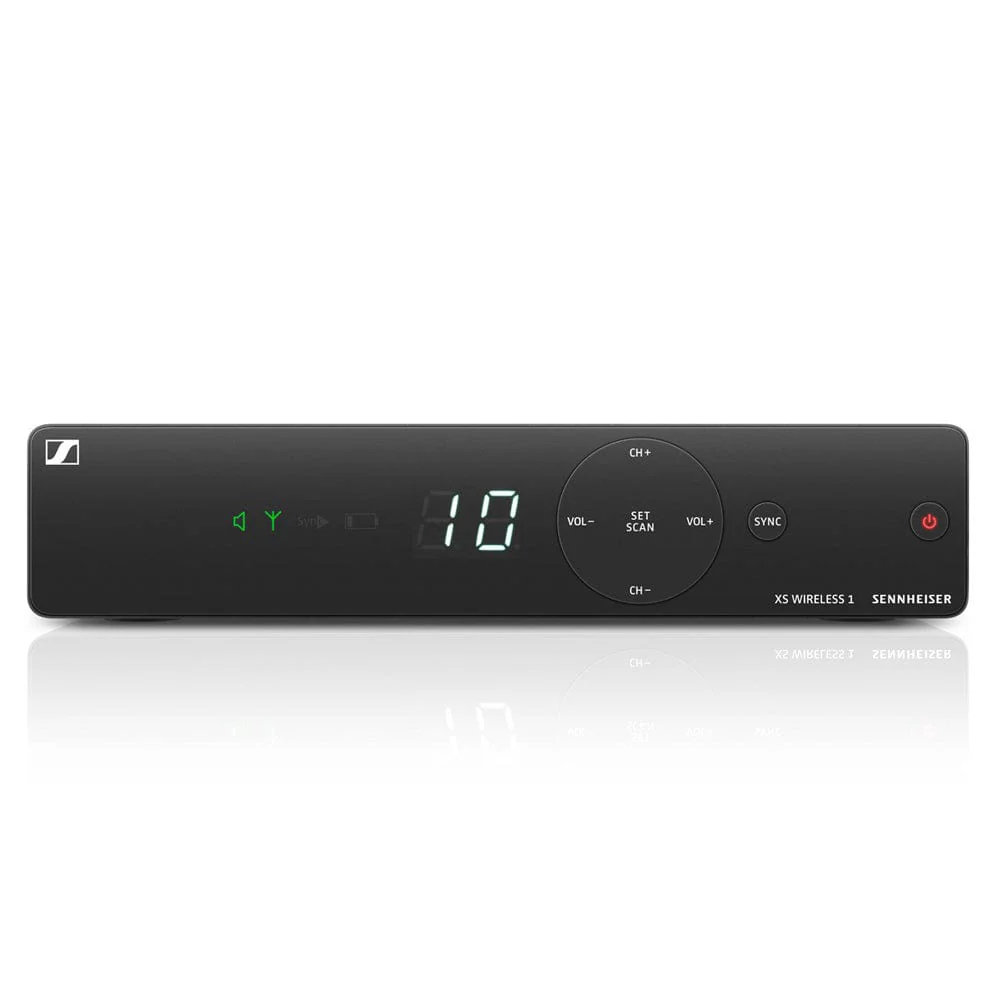

• 1 receiver EM-XSW 1
• 1 handheld transmitter SKM 825-XSW or SKM 835-XSW
• 1 microphone clamp MZQ 1
• 1 power supply NT 12-5 CW
• 2 AA batteries

Specifications :

• Dimensions approx : 200 x 42 x 127 mm
• THD, total harmonic distortion ≤ 0.9%
• Pick-up pattern cardioid
• Signal-to-noise ratio : ≥ 103 dBA
• RF output power : 10 mW
• Switching bandwidth : up to 24 MHz
• Operating time approx : 10 hrs
• Modulation : wideband FM
• Output voltage : 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced) : +12 dBu
• Housing : rugged ABS housing
• Dynamic range : dynamic
• Frequency : 8 frequency banks, each with up to 10 factory-preset channels

Frequency range :

• A: 548-572 MHz
• C: 766-790 MHz

Specifications :

• Sensitivity : < 3 μV at 52 dB(A)rms S/N
• Squelch : adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity : 1.5 mV / Pa
• Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range : 45 dB, adjustable in 5-dB steps
• Line / Mic level : 20 dB, switchable
• Temperature Range operation : 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle : double superheterodyne
• Diversity principle : Antenna switching diversity via internal antennas

Receivers

• Weight approx :  340g
• Power supply Receiver : 12 V DC nom. / 300 mA
• AF frequency response Receiver: 50 to 16,000 Hz (–3 dB)

Microphone

• Weight approx : 245g
• Power supply Microphone : 2 AA size batteries, 1.5 V
• AF frequency response : SKM 825: 80-14,000 Hz
• SKM 835 : 80-16,000 Hz

Made in Germany
