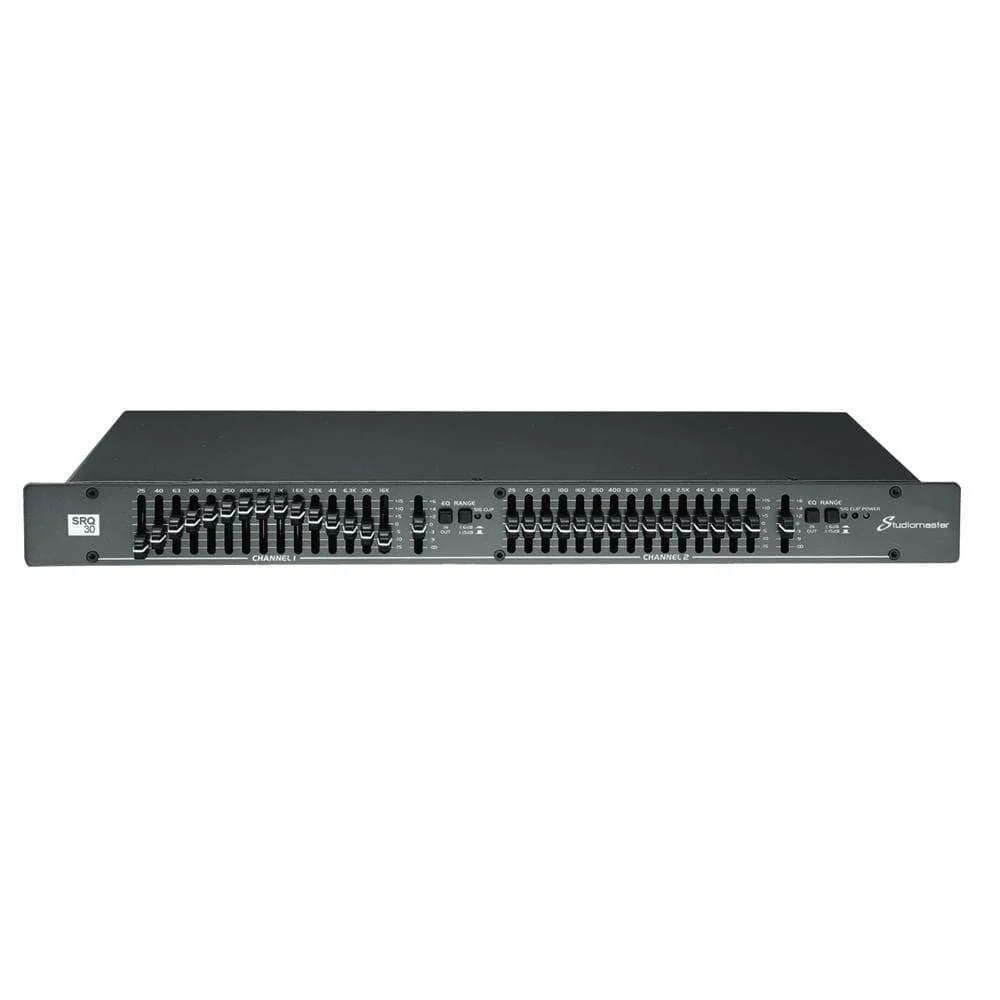

StudioMaster SRQ 30 Series 2x15 Band Graphic Equalizer

StudioMaster SRQ 30 Series 2x15 Band Graphic Equalizer

Features :

• Compact size 2 x 15 band 2 / 3 octave graphic equaliser
• Input trim and signal / clip led indication
• Switchable cut / boost range for accurate adjustment
• Bypass switch for quick comparison
• 19″ 1U

Specifications :

• Centre frequencies: SRQ30 (63Hz-16kHz), SRQ62 (20Hz-20kHz), SRQ62L (20Hz-20kHz)
• Frequency response: 10Hz – 55kHz
• Frequency cut/boost: 12dB
• Distortion: 0.004%
• Signal to noise ratio: 98dB
• Gain cut/boost: selectable 15dB / 6dB
• Input trim range: infinity to +6dB
• Maximum input level: +23dBu balnced, +20dBu unbalanced
• Maximum output level: +23dBu balnced, +20dBu unbalanced
• Input impedance: 20k ohms balanced, 10k ohms unbalanced
• Output impedance: <150 ohms
• Hi pass filter: SRQ62 (40Hz @ 12dB/oct), SRQ62L (12-285Hz @12dB/oct)
• Metering: 2x M10 hanging points
• Meter calibration: 2x M10 hanging points
• Connections: 2x M10 hanging points
• Fader travel: 2x M10 hanging points
• Power requirements: 2x M10 hanging points
• Power consumption: 2x M10 hanging points
• Dimension W*D*H: 483×186 x 44(SRQ30), 88(SRQ62), 132(SRQ62L) mm
• Weight: 2.5kg



Made in China
