Waves Abbey Road RS56 Passive EQ: Passive Equalizer Plugin

Even the most modern productions revere the classic sounds of the 50s and 60s—like those from the RS56 the very first parametric EQ. A silky smooth powerful and musical stereo EQ RS56 is perfect for loops drums and synths or the entire mix bus. Created in the early 50s for mastering the RS56 was used extensively in the vinyl cutting rooms. But before long Abbey Road’s recording engineers realized it was superior to the basic tone controls found in that era’s consoles—and it quickly became a go-to option famously heard on the Beatles’ recordings.

Harness the Creative Mixing Possibilities of the “Curve Bender”

Do the math—RS56’s 18 controls allow for 14 million (!) different control combinations. Yet the parameters are arranged so simply and logically that dialing in the right sound is easy. This creativity earned the unit its “Curve Bender” nickname due to its ability to mangle sound.

Not Just 3 Bands—the Right Bands

3 bands? Look again. Each band has 4 curated frequencies and 6 different filter characters from “blunt” to “sharp.” These parameters were chosen for maximum musicality and are valid to this day.

Digital Additions to the Original Classic

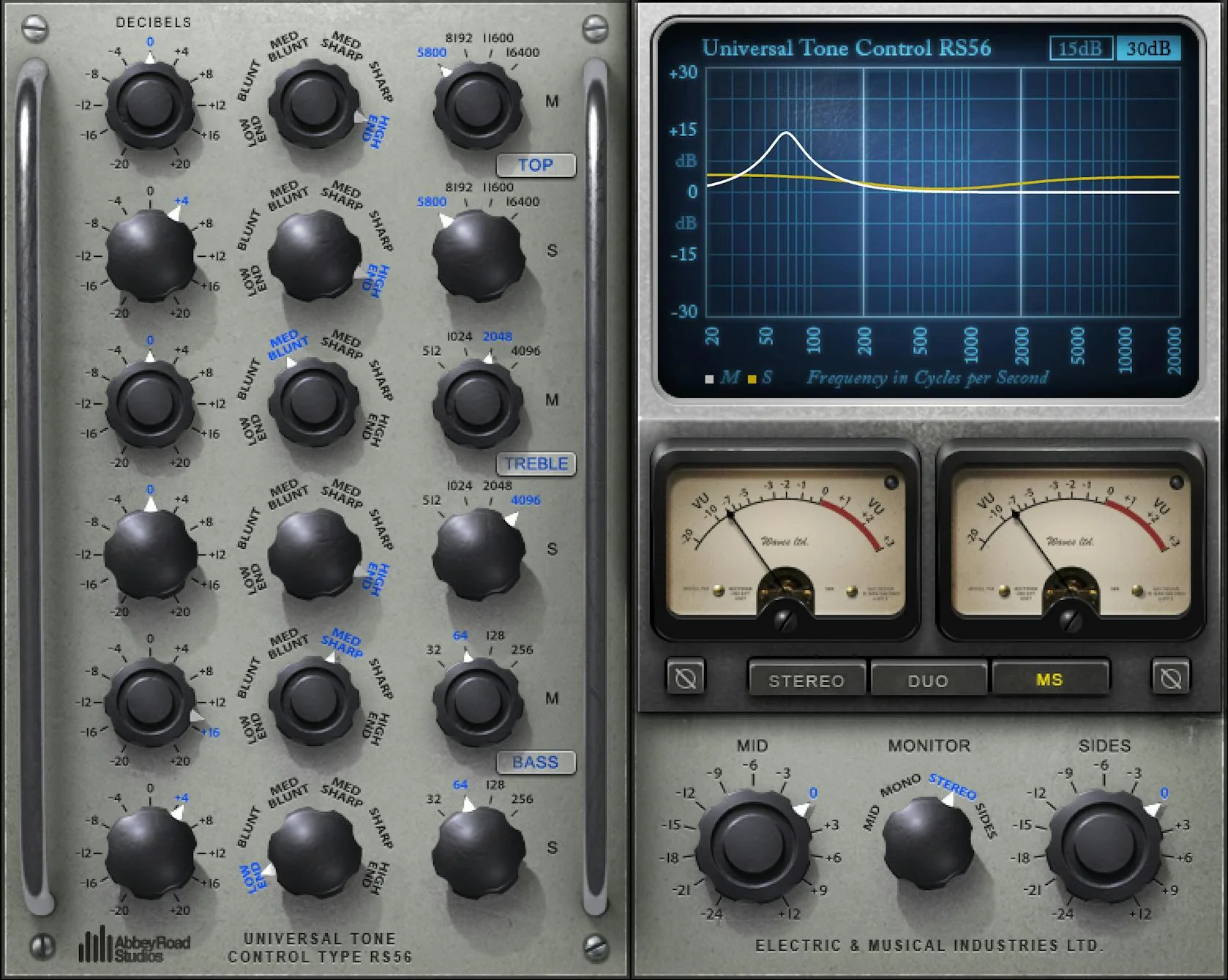

The original unit’s ±10 dB of gain has been increased to ±20 dB of gain in the plugin to match current mixing standards. The plugin also adds Mid/Sides options in addition to mono and stereo. And a graphic display—not possible in the original hardware—provides insights into the frequency response settings.

Features:

• Developed in close collaboration with Abbey Road Studios
• 3 bands 4 frequencies per band 6 filter types per band
• Models the velvety transparent sound of passive equalization
• 37 presets showcase the RS56’s classic qualities
• Precise modeling of the rare gear used on classic recordings
• Stereo dual mono or mid-side processing
• EQ graph provides visual frequency response confirmation
• Includes helpful modern enhancements to the original

Requirements:

Platform	CPU	RAM	Disk	Notes	Additional Requirement	Audio Card	Ports	Internet Required	32 Bit Support	64 Bit Support	Plugins
mac	Intel or Silicon Architecture	8	16		Minimum: 1024x768 Recommended: 1280x1024 / 1600x1024 USB displays are not supported as the primary display.			0	0	0
windows	X64 compatible Intel or AMD CPU	8	16		Minimum: 1024x768 Recommended: 1280x1024 / 1600x1024			0	0	0
